Tri-Clamp Adapter O-ring

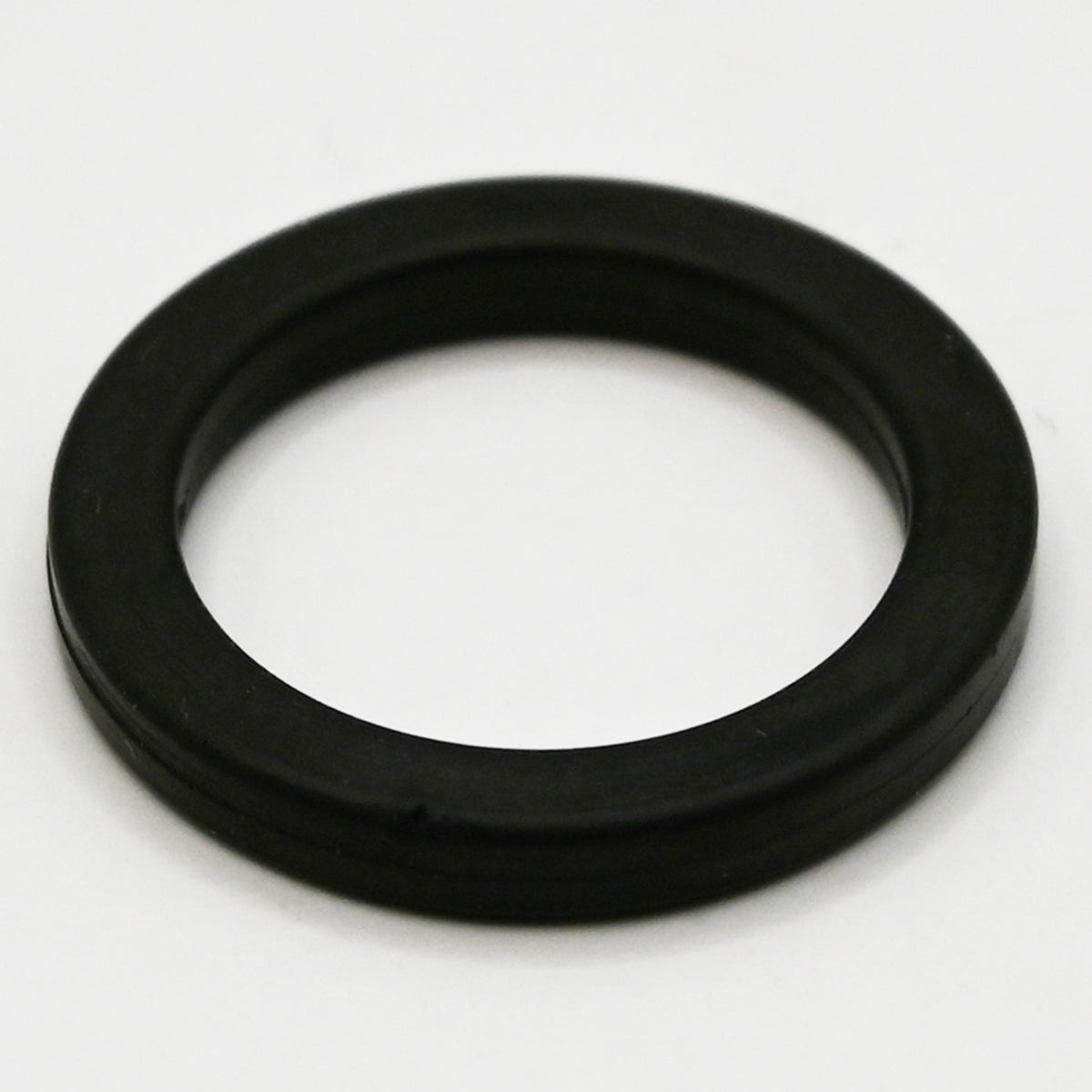

Black rubber O-ring on white background.

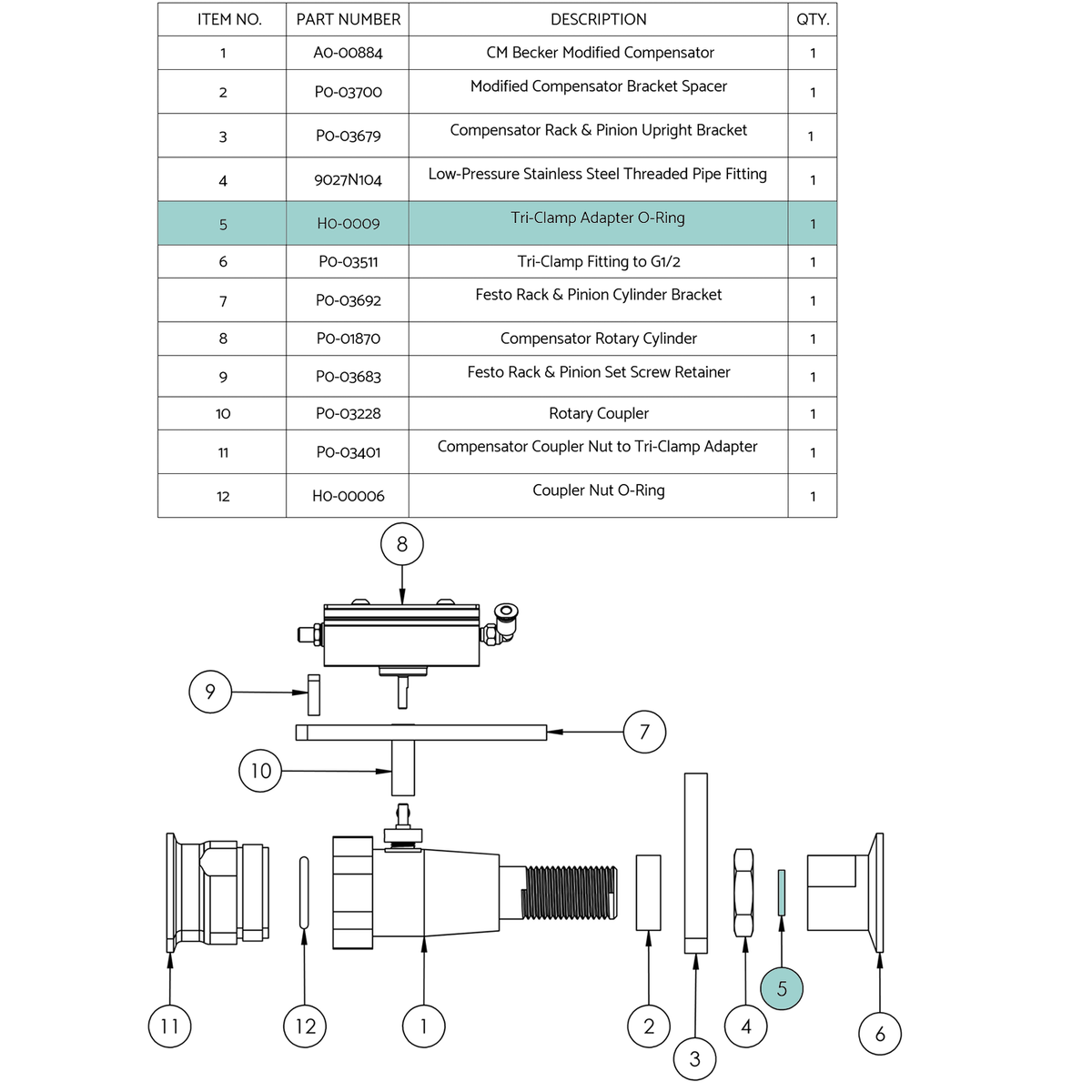

Exploded view drawing of an assembly on white background with Tri-Clamp Adapter O-ring highlighted in aqua color.

Tri-Clamp Adapter O-rings are used to create a seal between the the threaded compensator shank and the 1.5″ Tri-Clamp Adapter.

Tri-Clamp Adapter O-rings are used to create a seal between the the threaded compensator shank and the 1.5″ Tri-Clamp Adapter.

  • This O-ring is considered a wear part and should be inspected on a monthly basis.

Specs:

  • Material: Buna-N Rubber
  • Cross Section Shape: Square
  • ID: 0.55″ (1.4cm)
  • OD: 0.76″ (1.93cm)
  • Hardness: Durometer 70A (Medium)
  • Temperature Range: -30° to 212° F (-34.4° to 100° C)
