Shielded Connecting Cable – 0.3m (11.81″)

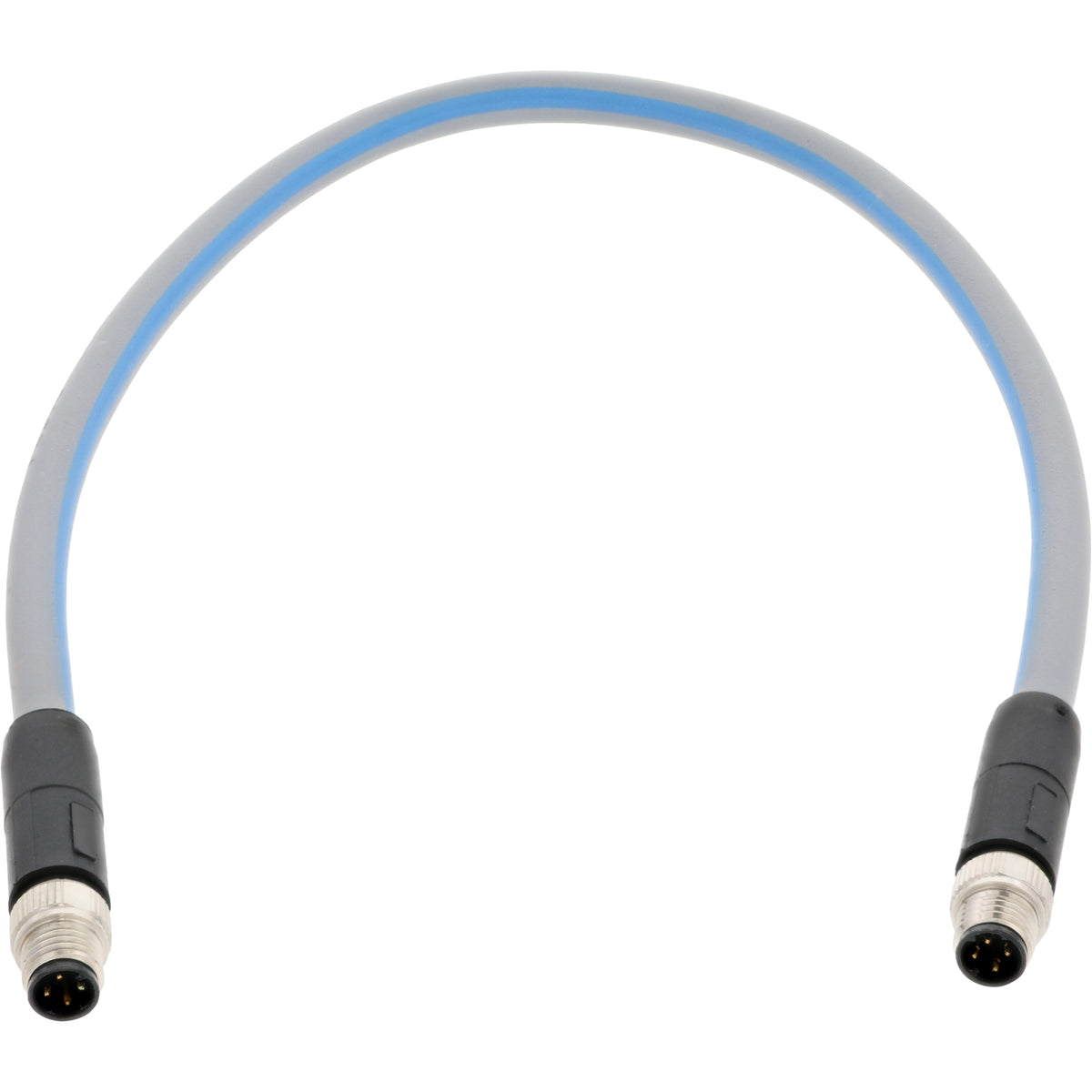

Blue and grey .3 meter connecting cable with nickel plated four pin connectors on both ends. Cable shown on white background.

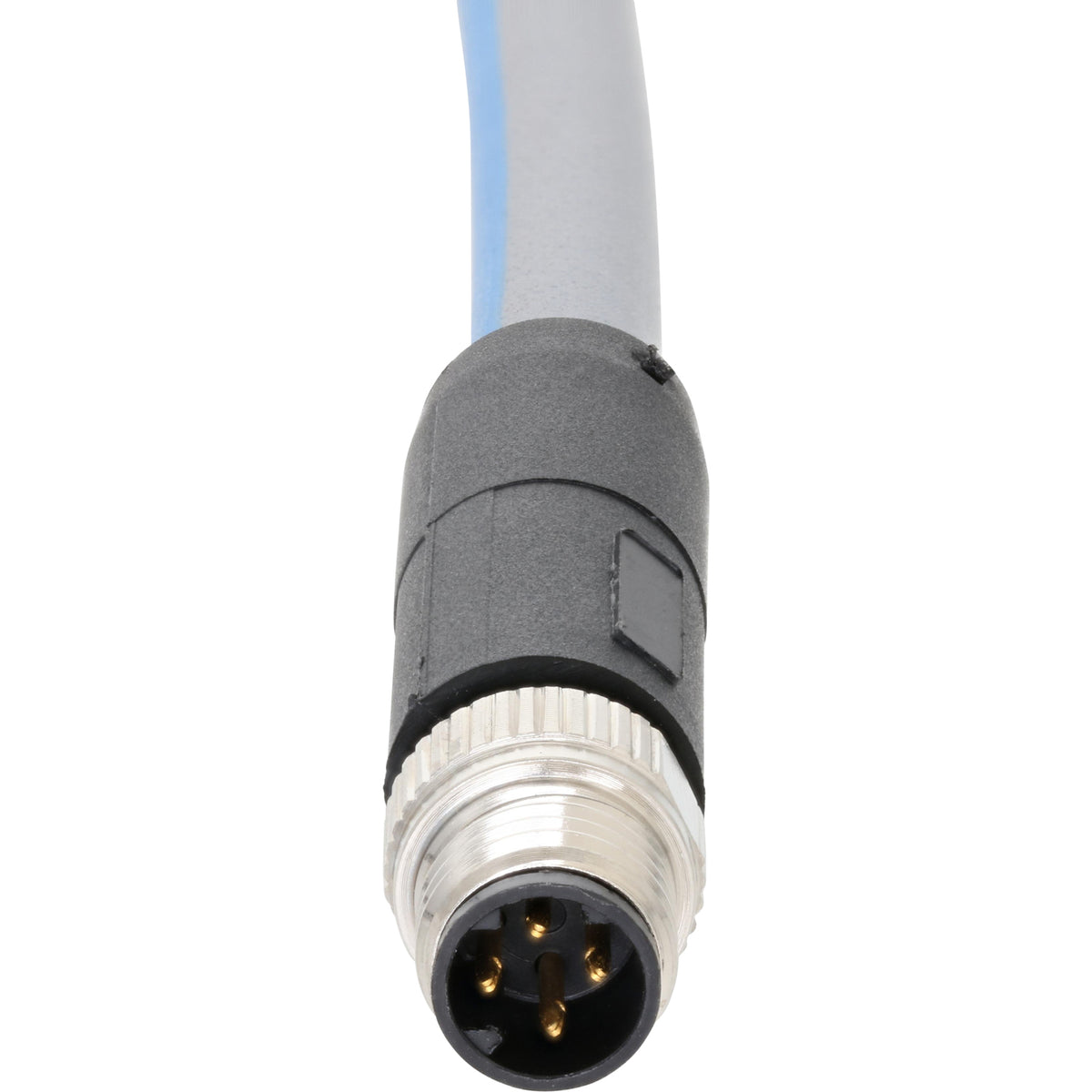

Blue and grey connecting cable with nickel plated four pin male connector on white background.

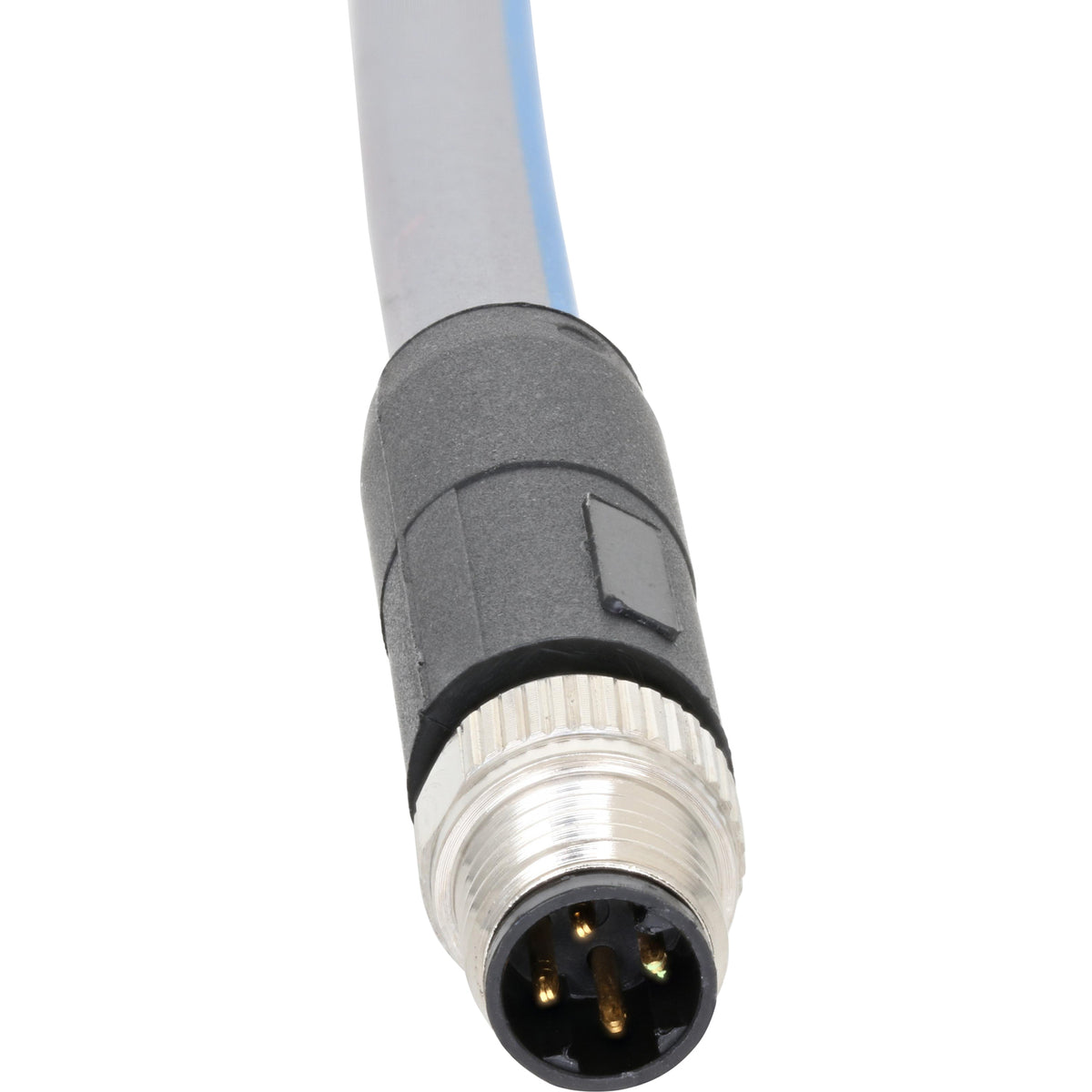

Blue and grey connecting cable with nickel plated four pin male connector on white background.

This shielded four pin connecting cable is 0.3 m (11.81 in) and is used with all Fusion systems. It has a molded straight M8x1 threaded male connection on both ends and is suitable for energy chains.

This shielded four pin connecting cable is 0.3 m (11.81 in) and is used with all Fusion systems.

It has a molded straight M8x1 threaded male connection on both ends and is suitable for energy chains.

Specs:

  • DC operating voltage range: 0 V … 30 V
  • Nominal operating voltage DC: 24 V
  • Current rating at 40° C: 3 A
  • Surge resistance: 1.5 kV
  • Protective earth connection: Not available
  • Shield: yes
  • Cable diameter: 6.3 mm
  • Material of screw-type lock: Brass, nickel-plated
