Push-In L-Fitting (Legacy)

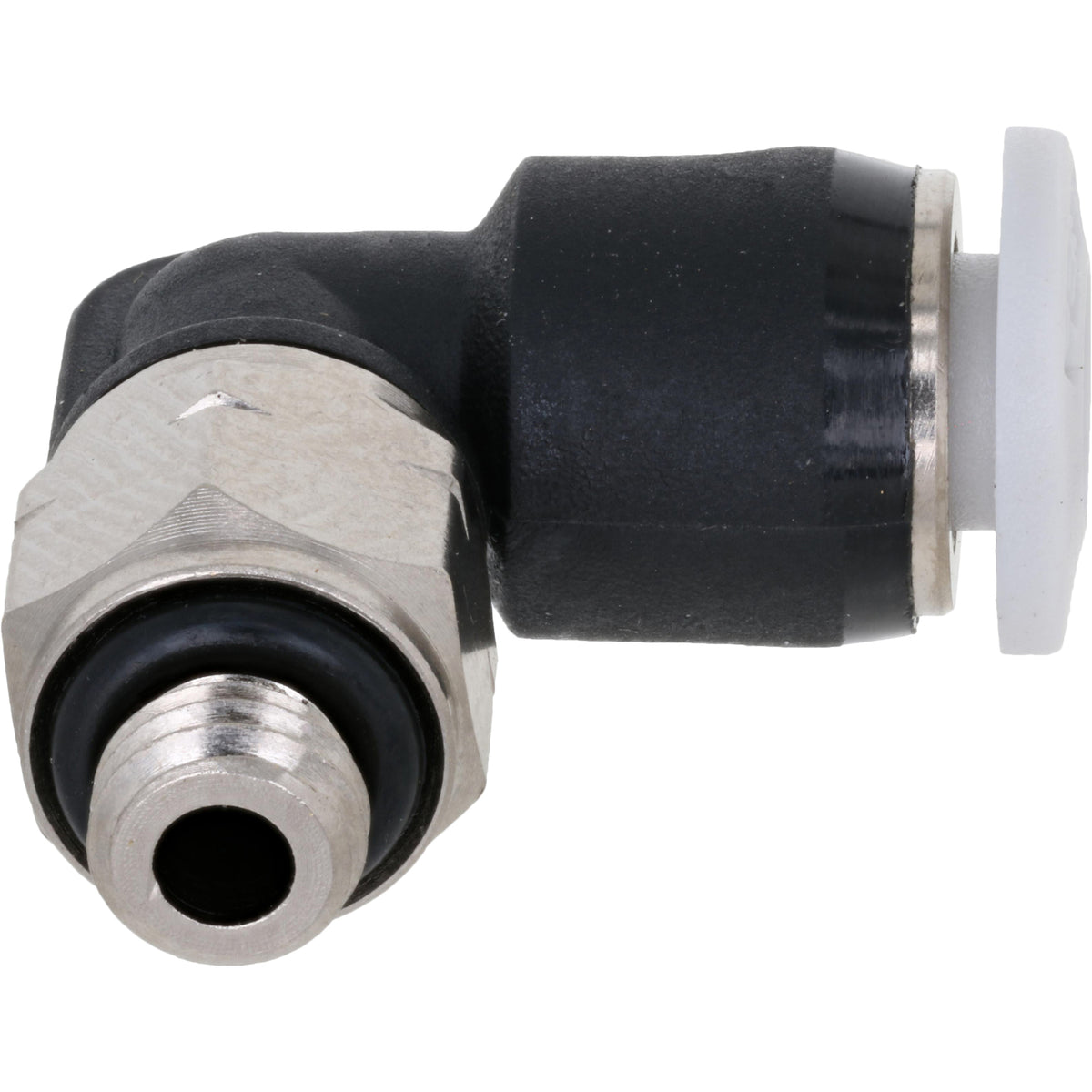

Black and grey L shaped push connect fitting with stainless steel mounting flats and 10-32 threads shown on white background.

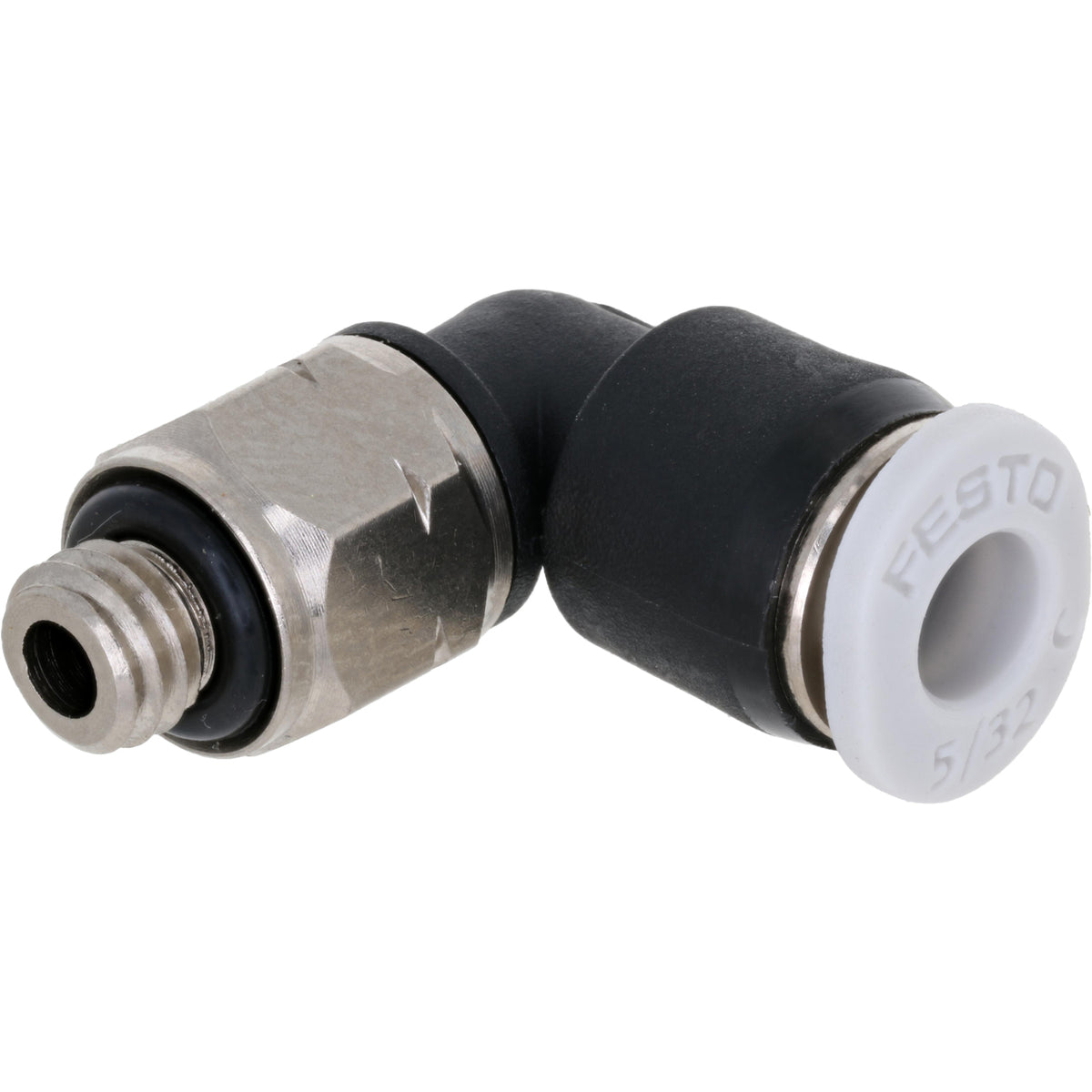

Black and grey L shaped push connect fitting with stainless steel mounting flats and 10-32 threads shown on white background.

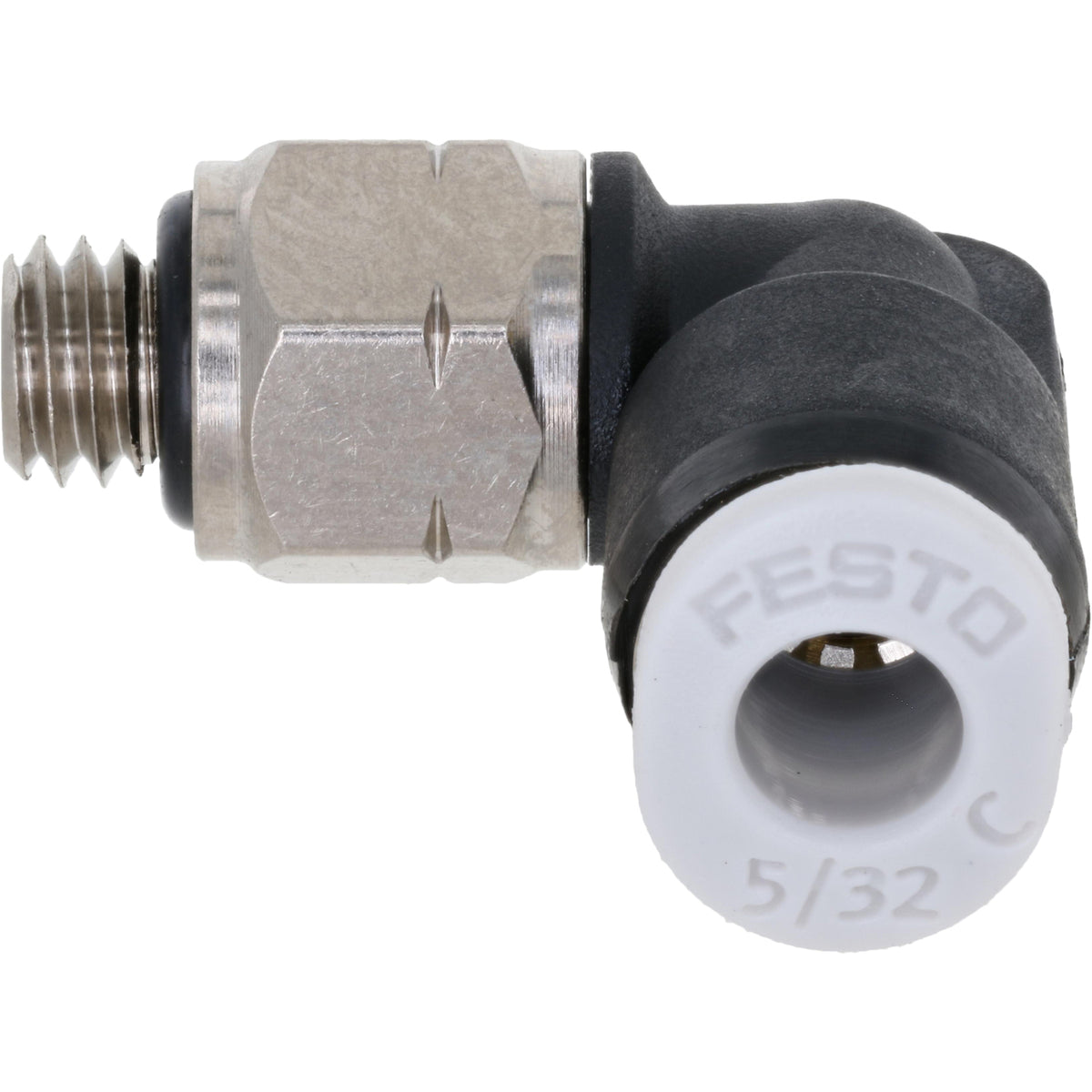

Black and grey L shaped push connect fitting with stainless steel mounting flats and 10-32 threads shown on white background.

These Push-in L-fittings are used on all Wild Gosse Filling canning systems equipped with SMC nozzle cylinders . Compatible with Legacy Bimba nozzle cylinders.

These Push-in L-fittings are used on all Wild Gosse Filling canning systems equipped with SMC nozzle cylinders.

  • Compatible with Legacy Bimba nozzle cylinders.
  • Design: L-shape
  • Type of mounting: External hexagon 5/16″
  • Max. tightening torque: 1.5 Nm
  • Pneumatic connection 1: External thread 10-32 UNF-2A
  • Pneumatic connection 2: For pneumatic tubing outside diameter 5/32″
  • Releasing ring color: Grey
