Push-in Fitting for Air Knife Rinse Tunnel to Main Air

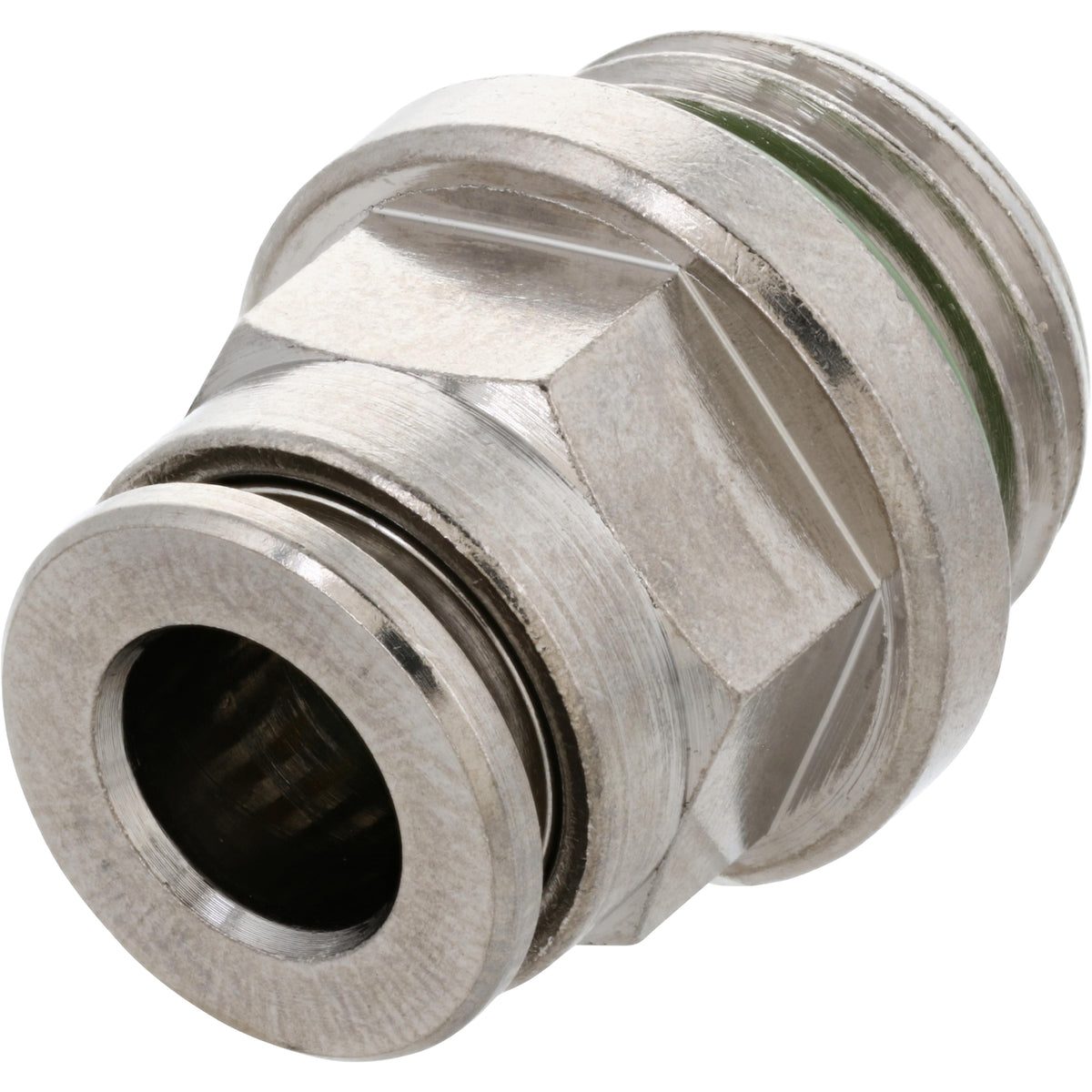

Nickel-Plated push-in fitting with push collar and threads. Part shown on white background.

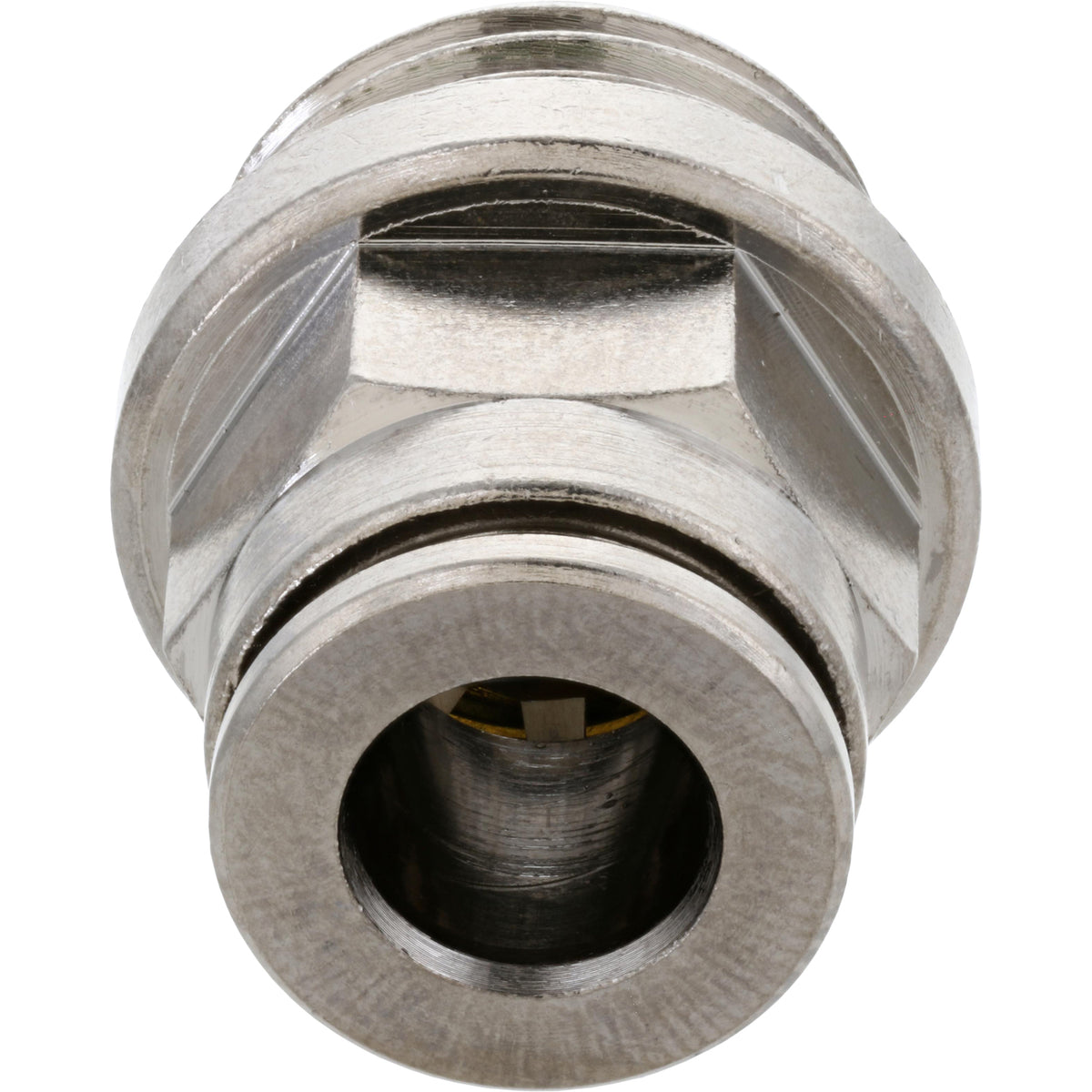

Nickel-Plated push-in fitting with push collar and threads. Part shown on white background.

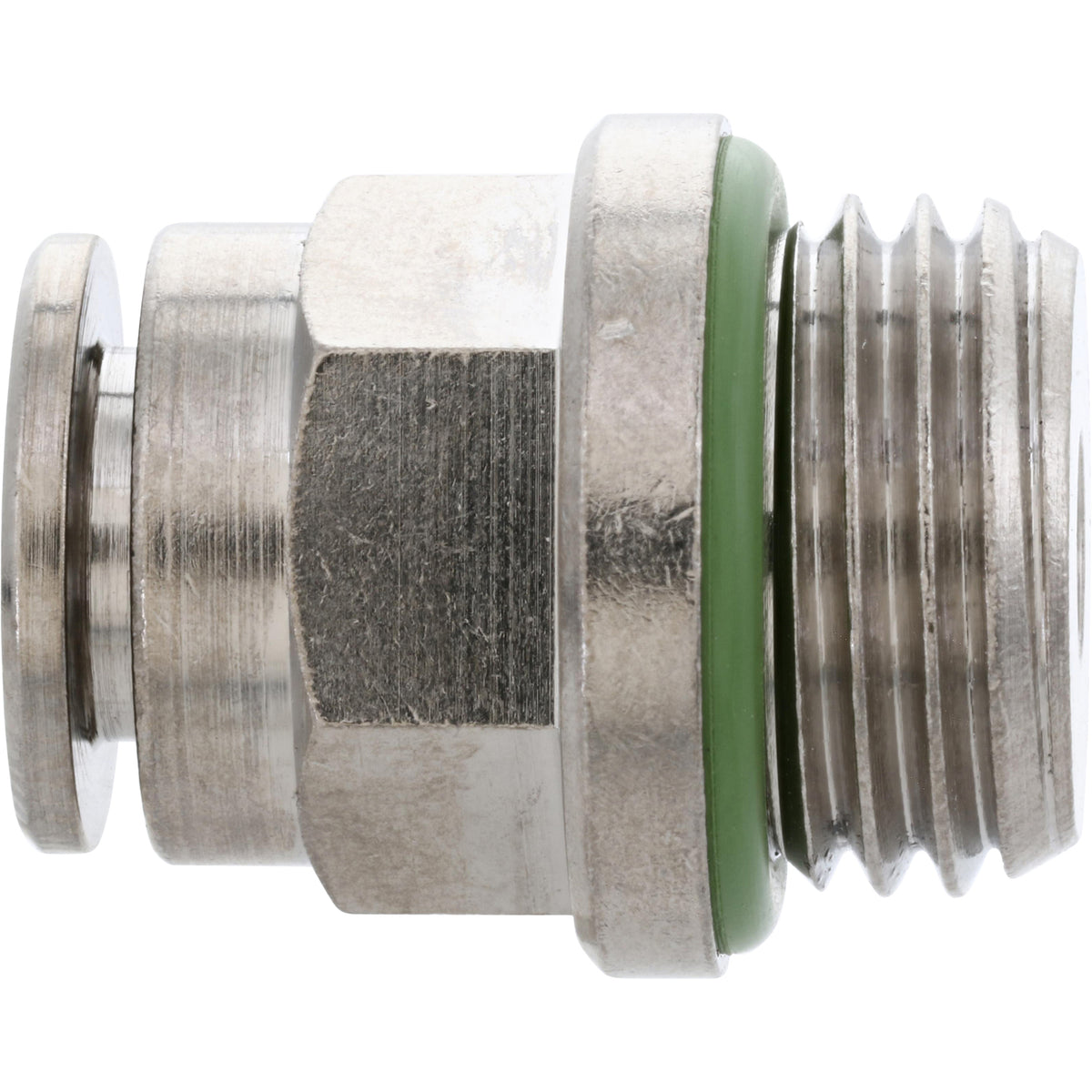

Nickel-Plated push-in fitting with push collar, green rubber o-ring and threads. Part shown on white background.

The push-in fitting is used with all Wild Goose Filling systems equipped with a Standard Rinse Tunnel.

The push-in fitting is used with all Wild Goose Filling systems equipped with a Standard Rinse Tunnel.

This part threads into a standard Industrial Quick-Disconnect Hose Plug (1/4″ Plug x 1/4″ Female NPT) and supplies compressed air to the Air Nozzles.

Features:

  • Solid-metal brass, chemically nickel-plated
  • High Corrosion and chemical resistance
  • Highly resistant to temperatures and pressure

Specs:

  • Nominal width: 4 mm
  • Tubing insertion depth: 15.8 mm
  • Structural design: Push-pull principle
  • Operating pressure for entire temperature range: -13.775 psi … 290 psi
  • Operating medium: Compressed air as per ISO 8573-1:2010 [7:-:-] Water (liquid, ice-free)
  • Nominal tightening torque: 7.5 Nm
  • Tolerance for nominal tightening torque: ± 20%
  • Product weight: 13.1 g
  • Pneumatic connection 1: External thread G1/4
  • Pneumatic connection 2: For pneumatic tubing with an outside diameter of 6 mm
