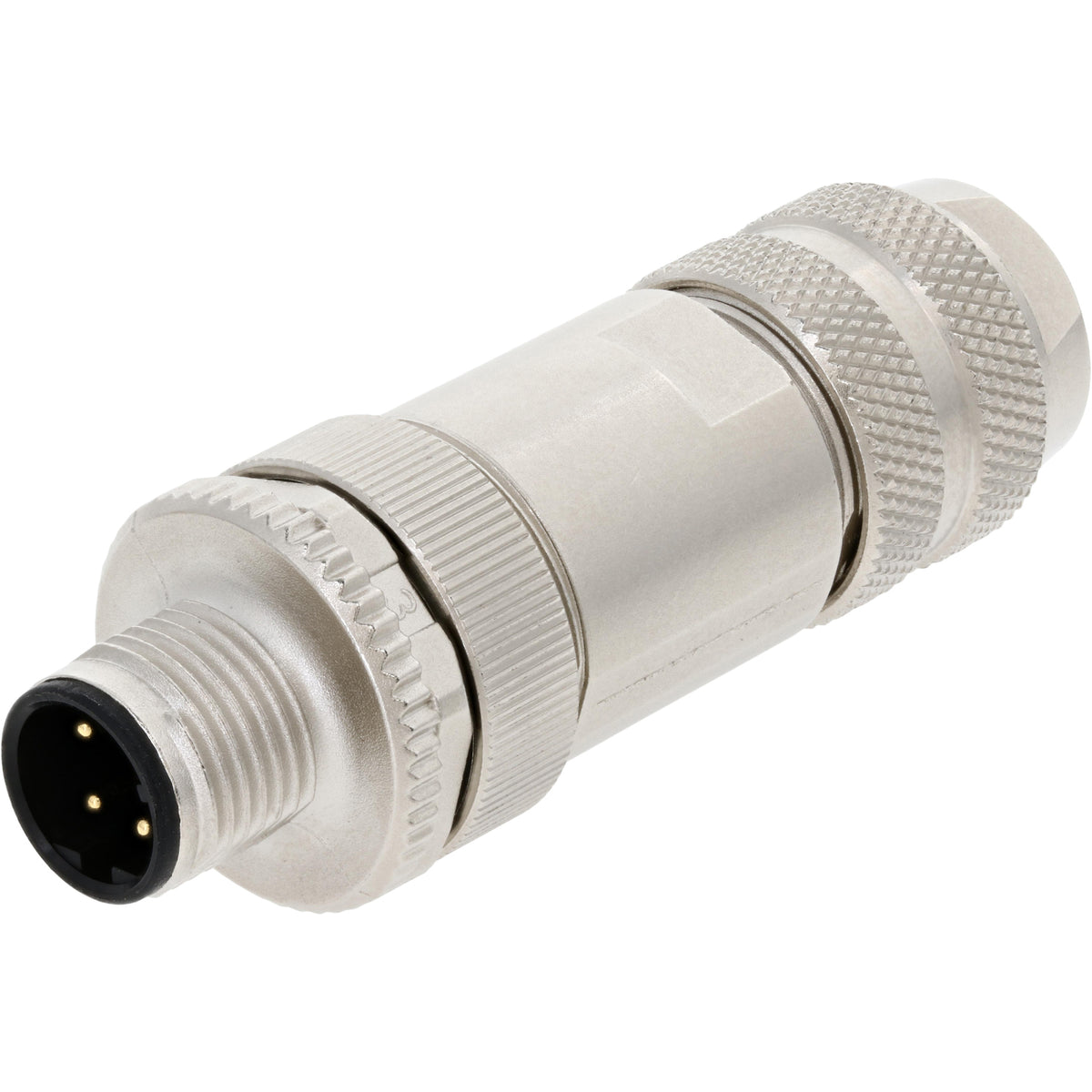

Power supply socket for fieldbus connection NECU-HX: reconnectable M8 and M12 round plug connectors with Harax® quick connection technology for low-voltage applications Plug and socket for power…

• Power supply socket for fieldbus connection
• NECU-HX: reconnectable M8 and M12 round plug connectors with Harax® quick connection technology for low-voltage applications
• Plug and socket for power supply

Specs:

• Electrical connection 1: Straight plug, M12x1, 4-pin, D-coded, shieldable
• Plug coding: D
• Electrical connection 2: Screw terminal, can be shielded
• DC operating voltage range: 0 V … 250 V
• Operating voltage range AC: 0 V … 250 V
• Surge resistance: 2.5 kV
• Transmission characteristics: DIN EN 50173/CAT 5
• Approved cable diameter: 6 mm … 8 mm
• Degree of protection: IP67
• Housing material: Die-cast zinc, nickel-plated
• Material of pin contacts: Brass, gold-plated
