Pin O-ring

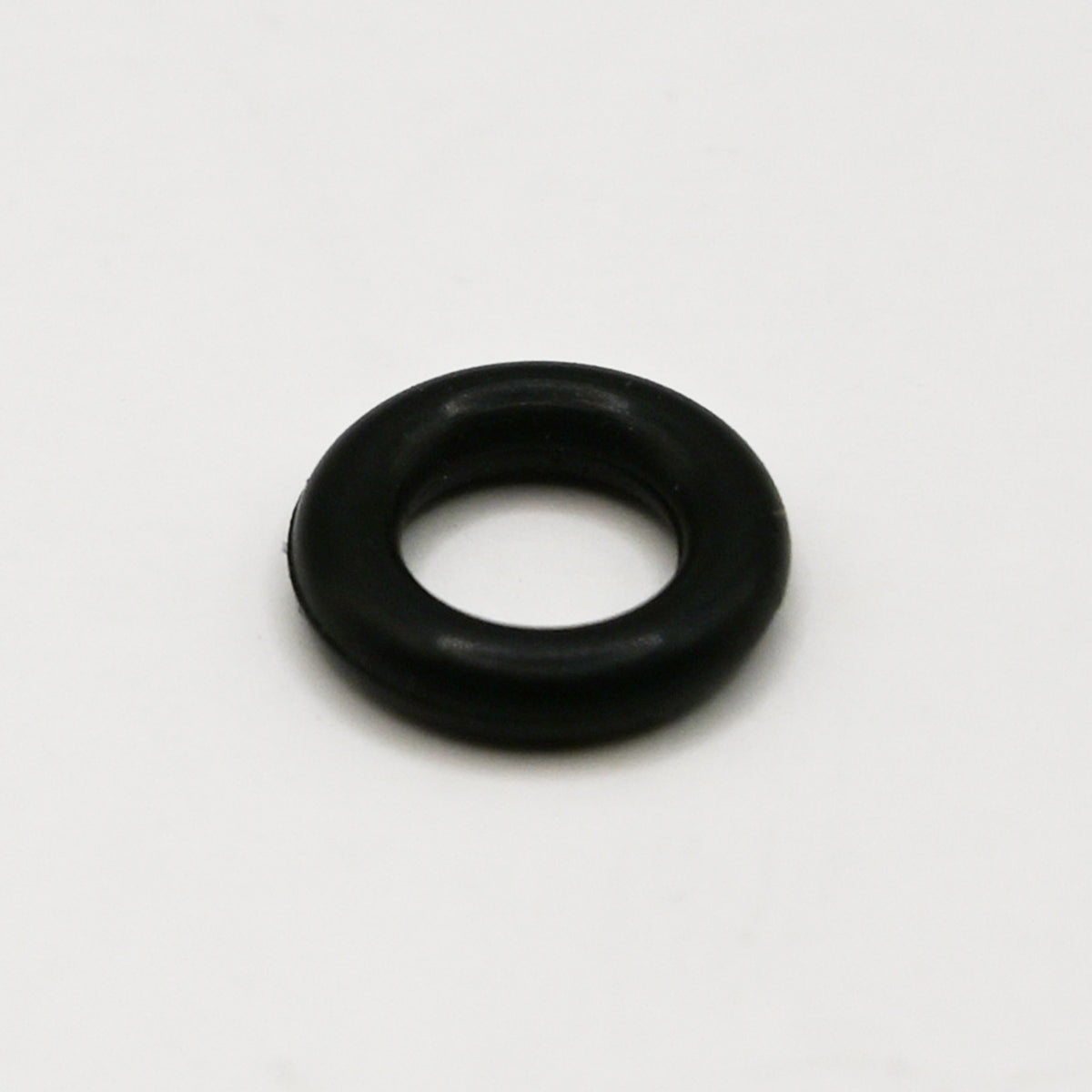

Black rubber O-Ring on white background.

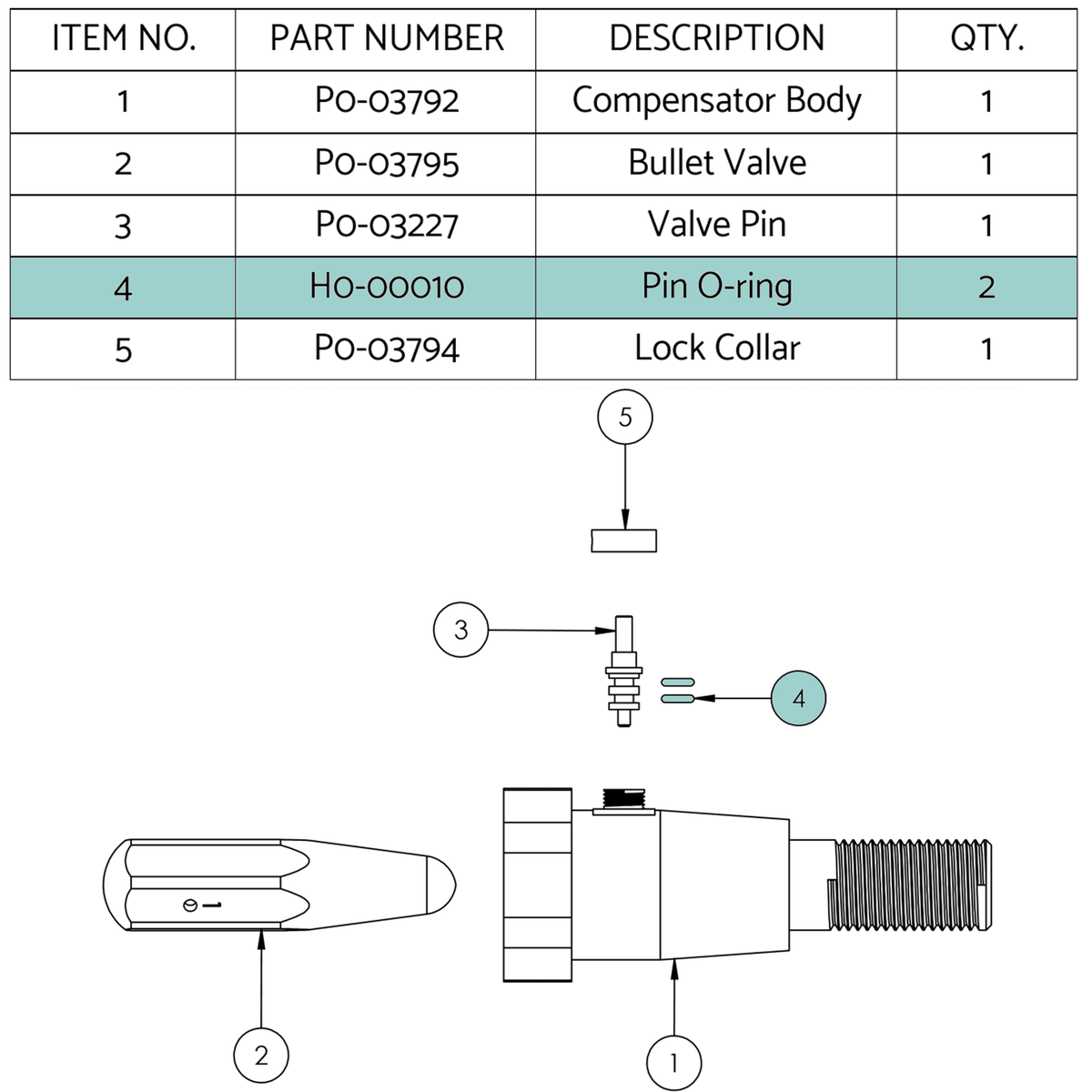

Exploded view drawing of assembly on white background with the Pin O-ring highlighted in aqua color.

The Pin O-rings are used with the Bullet Valve Pin and create a seal between the fluid path and compensator body.

The Pin O-rings are used with the Bullet Valve Pin and create a seal between the fluid path and compensator body.

  • These are considered a wear part and should be inspected and lubricated on a monthly basis.
  • WGF recommends replacement Pin O-rings be lightly lubricated with a food grade lubricant (petro gel) prior to installing.

Specs:

  • Material: EDPM Rubber
  • Cross Section Shape: Round
  • ID: 0.176″ (0.48cm)
  • OD: 0.316″ (0.80cm)
  • Hardness: Durometer 70A (Medium)
  • Temperature Range: -70° to 250° F (-56.7° to 121.1° C)
