IO Solenoid Module

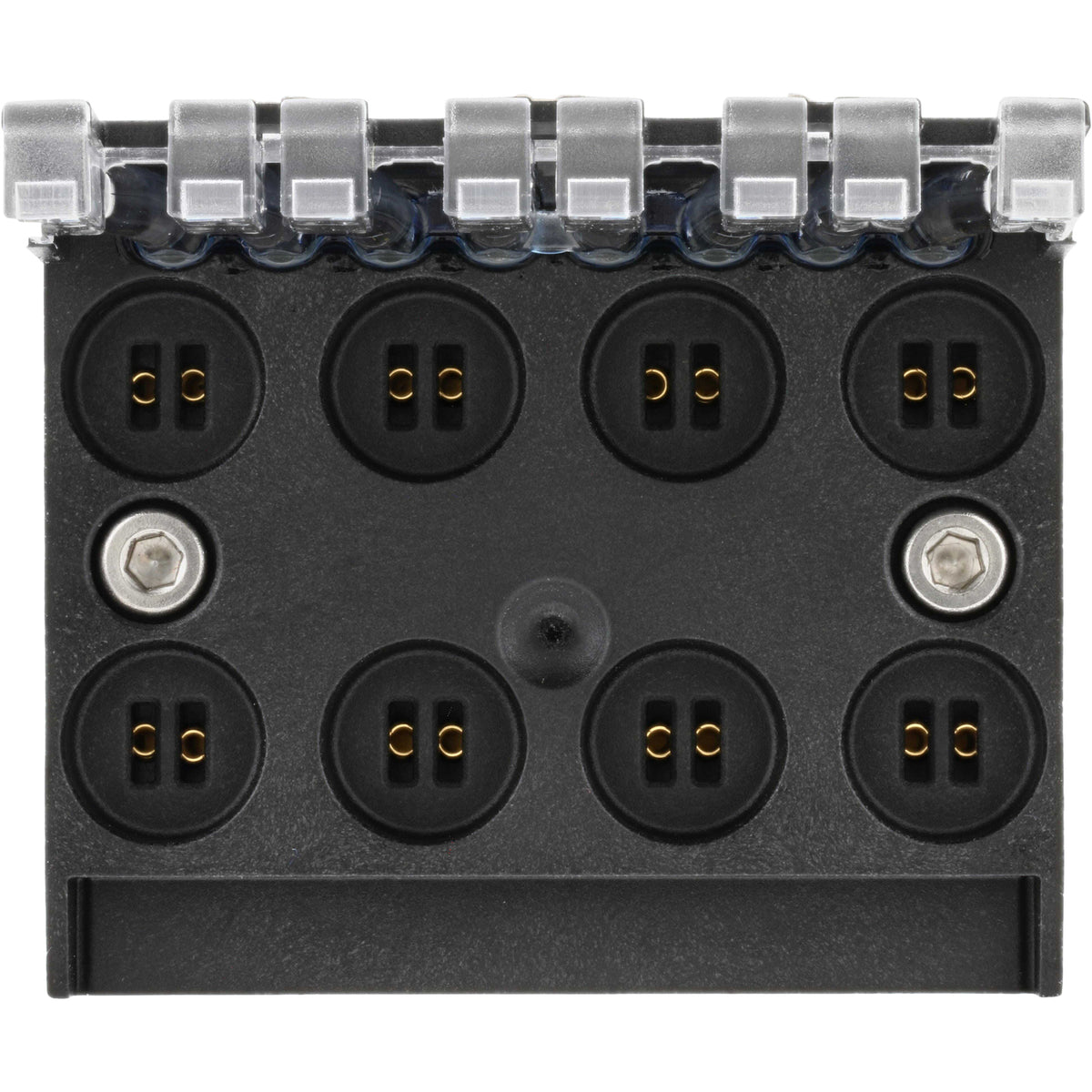

Black electronics module on white background.

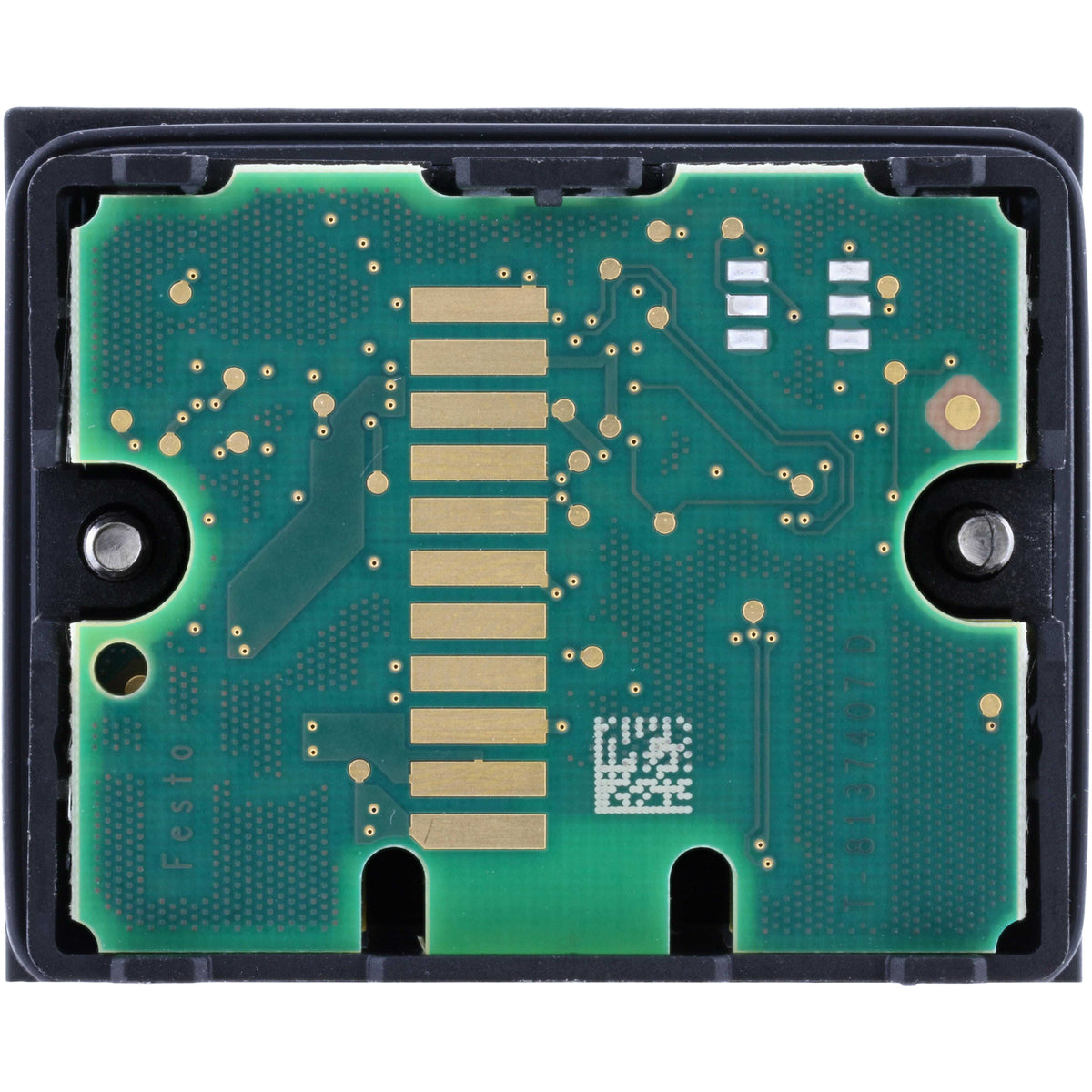

Backside of electronics module showing green microchip on white background.

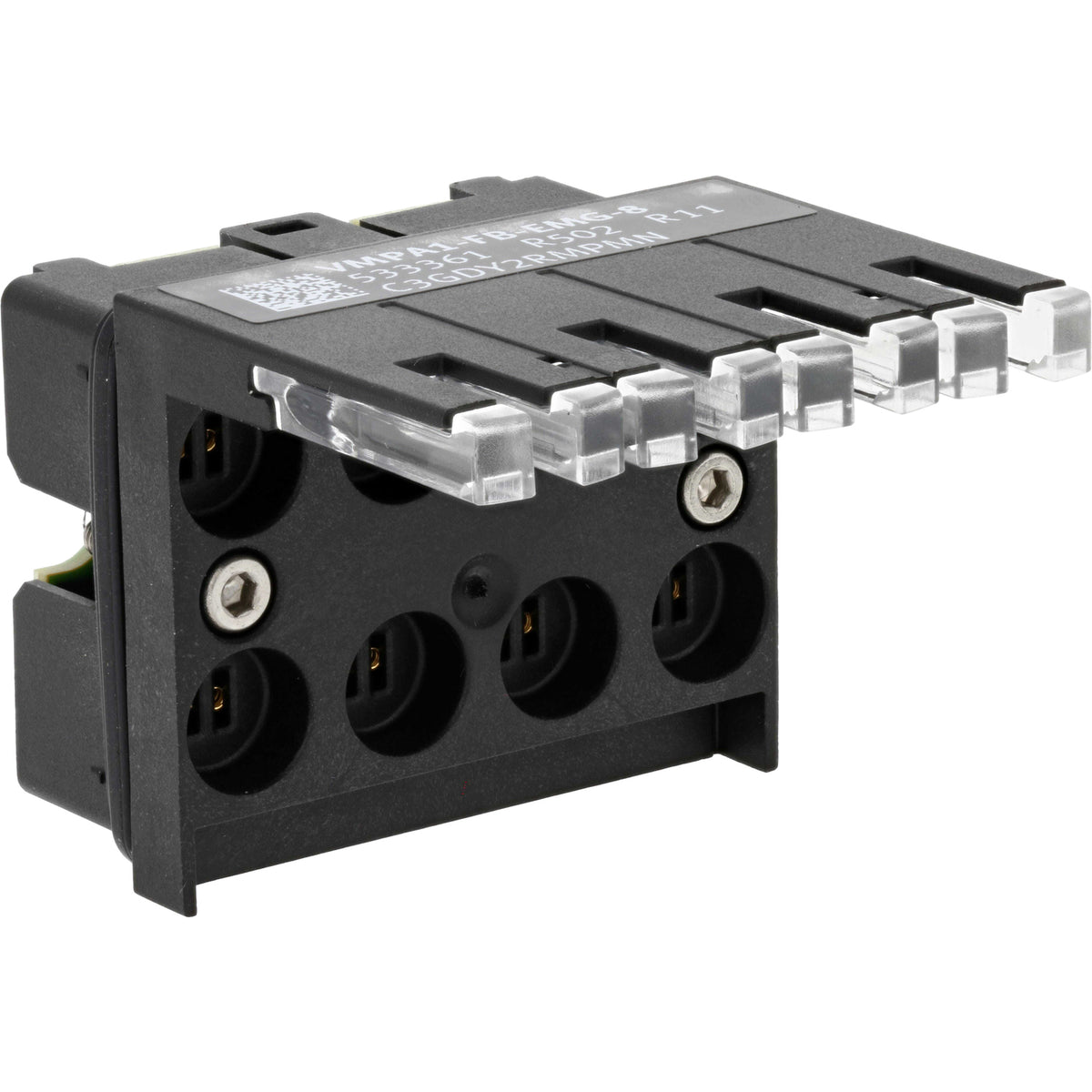

Black electronics module on white background.

This electronics module houses J, K, and M solenoids on Wild Goose Filling systems. Specs: Diagnostics Undervoltage of pneumatic valves: Undervoltage of pneumatic valves Max. no.

This electronics module houses J, K, and M solenoids on Wild Goose Filling systems.

Specs:

  • Diagnostics Undervoltage of pneumatic valves: Undervoltage of pneumatic valves
  • Max. no. of valve positions: 4
  • Max. no. of solenoid coils: 8
  • Intrinsic current consumption at load voltage: 23 mA
  • Intrinsic current consumption at operating voltage: 8 mA
  • Nominal pick-up current per solenoid coil: 58 mA to 24 ms
  • Nominal current with current reduction: 9 mA after 24 ms
  • Product weight: 20 g
