Green Pushbutton – Illuminated

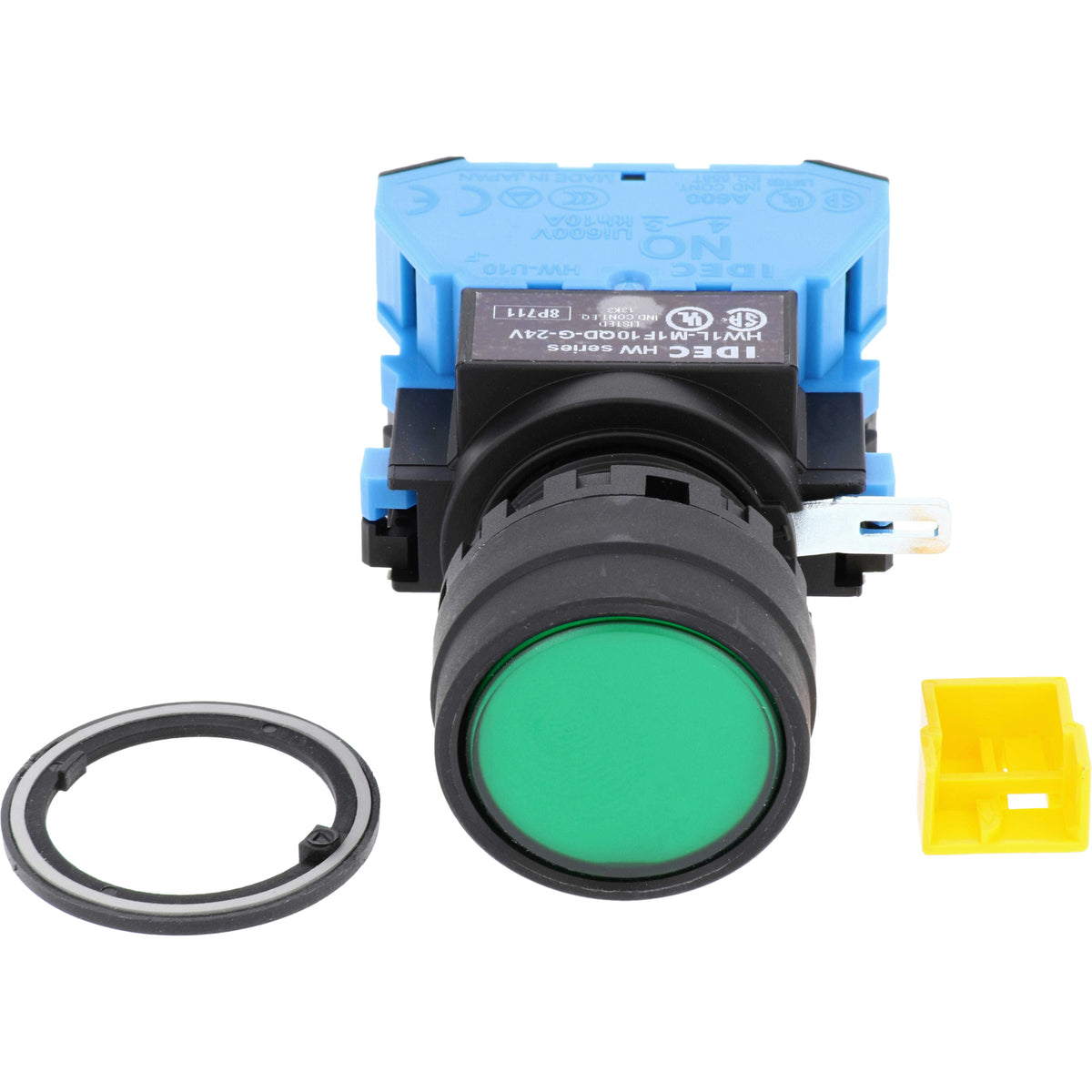

Green push button with black and blue housing on white background.

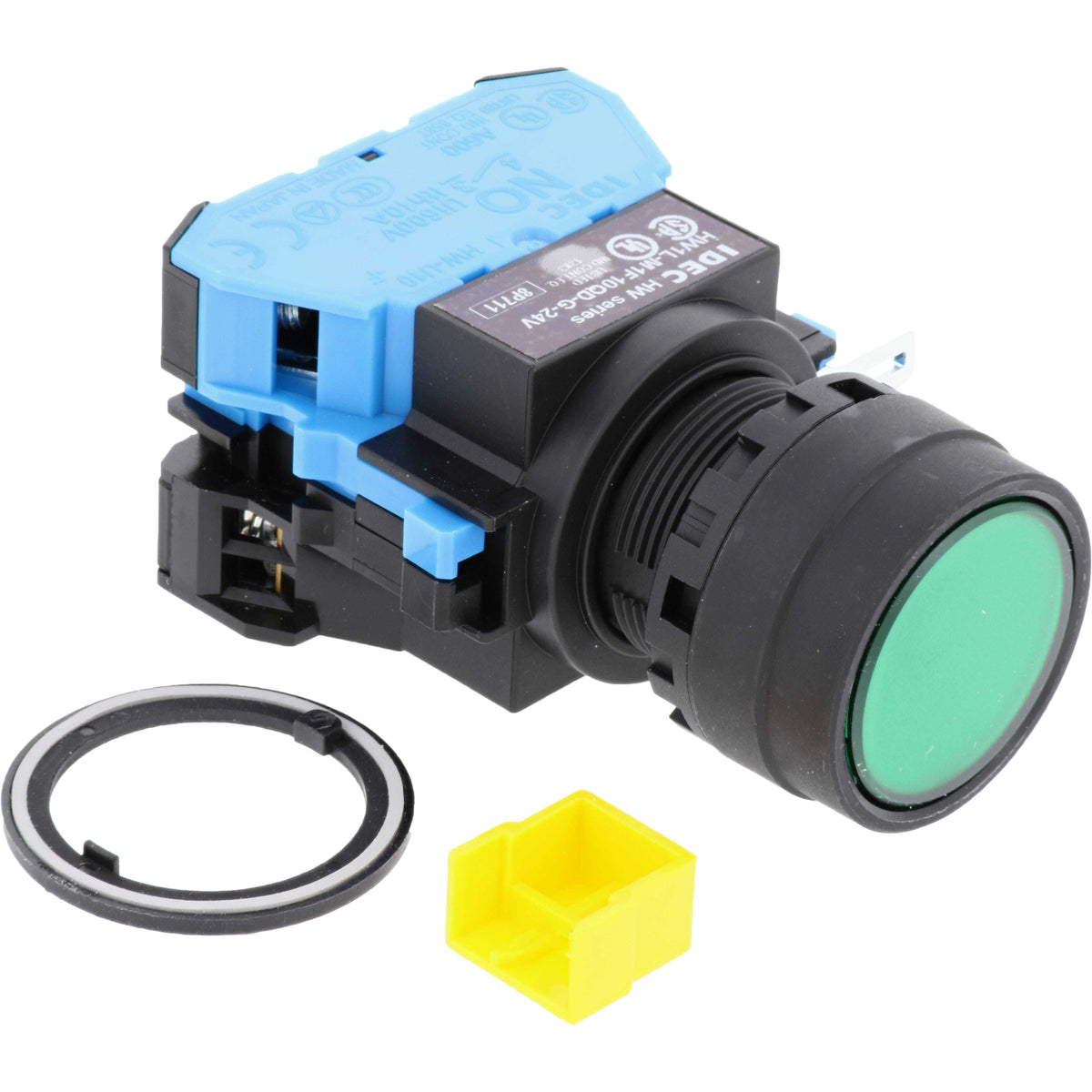

Green push button with black and blue housing on white background.

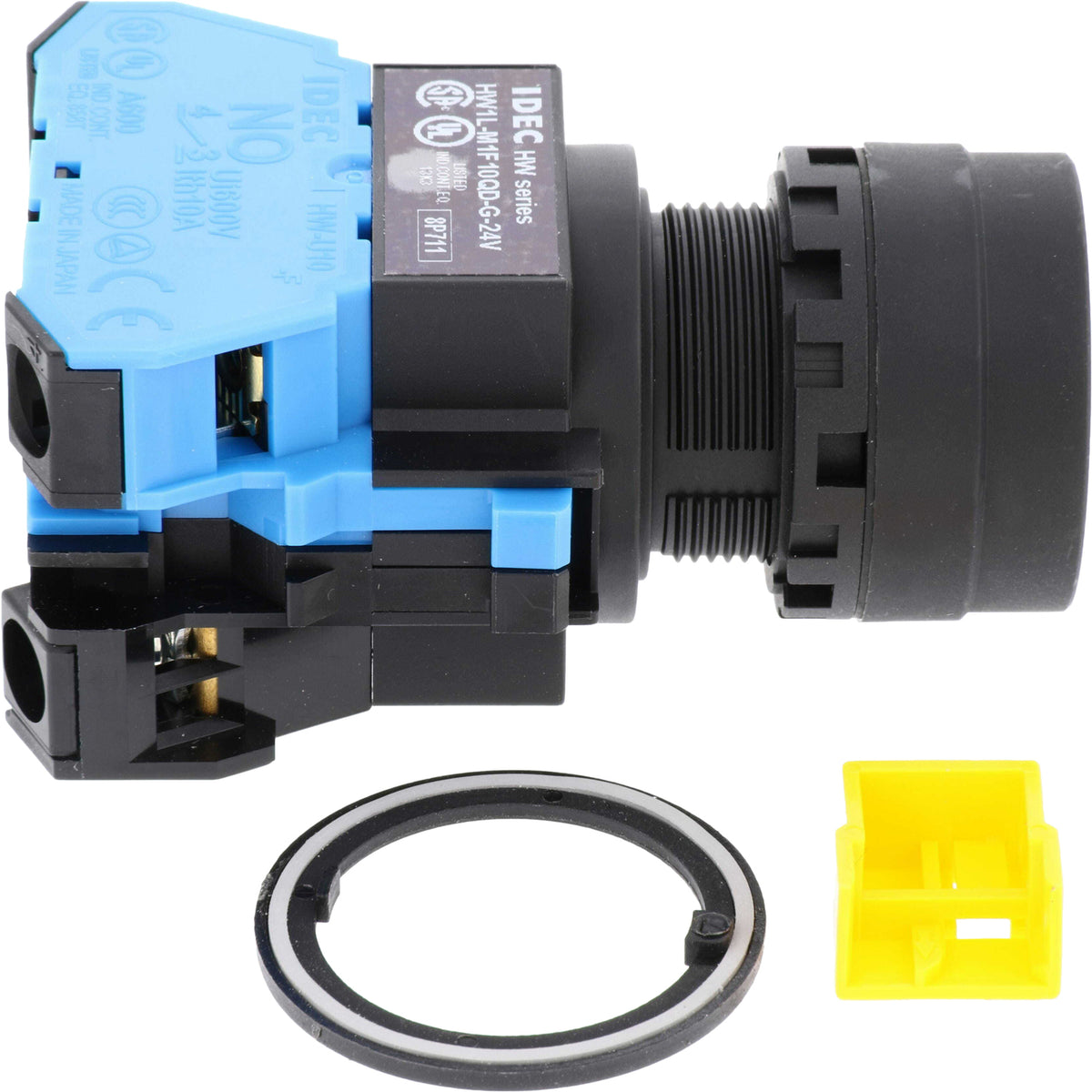

Green push button with black and blue housing on white background.

This green, illuminated pushbutton is found on all Evolution, Legacy WGC-100/250, Fusion and WG8/10 units and is used to supply air to the equipment once the machine has been taken out of e-stop.

This green, illuminated pushbutton is found on all Evolution, Legacy WGC-100/250, Fusion and WG8/10 units and is used to supply air to the equipment once the machine has been taken out of e-stop.

Specs:

  • Actuator Type: Round Flush
  • Nominal Mounting Size: 22 mm
  • Current Rating: 10 A
  • Nominal Lamp Voltage: 24 VAC, 24 VDC
  • Protection Rating: IP65
  • Operation: Momentary
  • Illumination Color: Green
