Gosling Rinser Box Leveling Feet

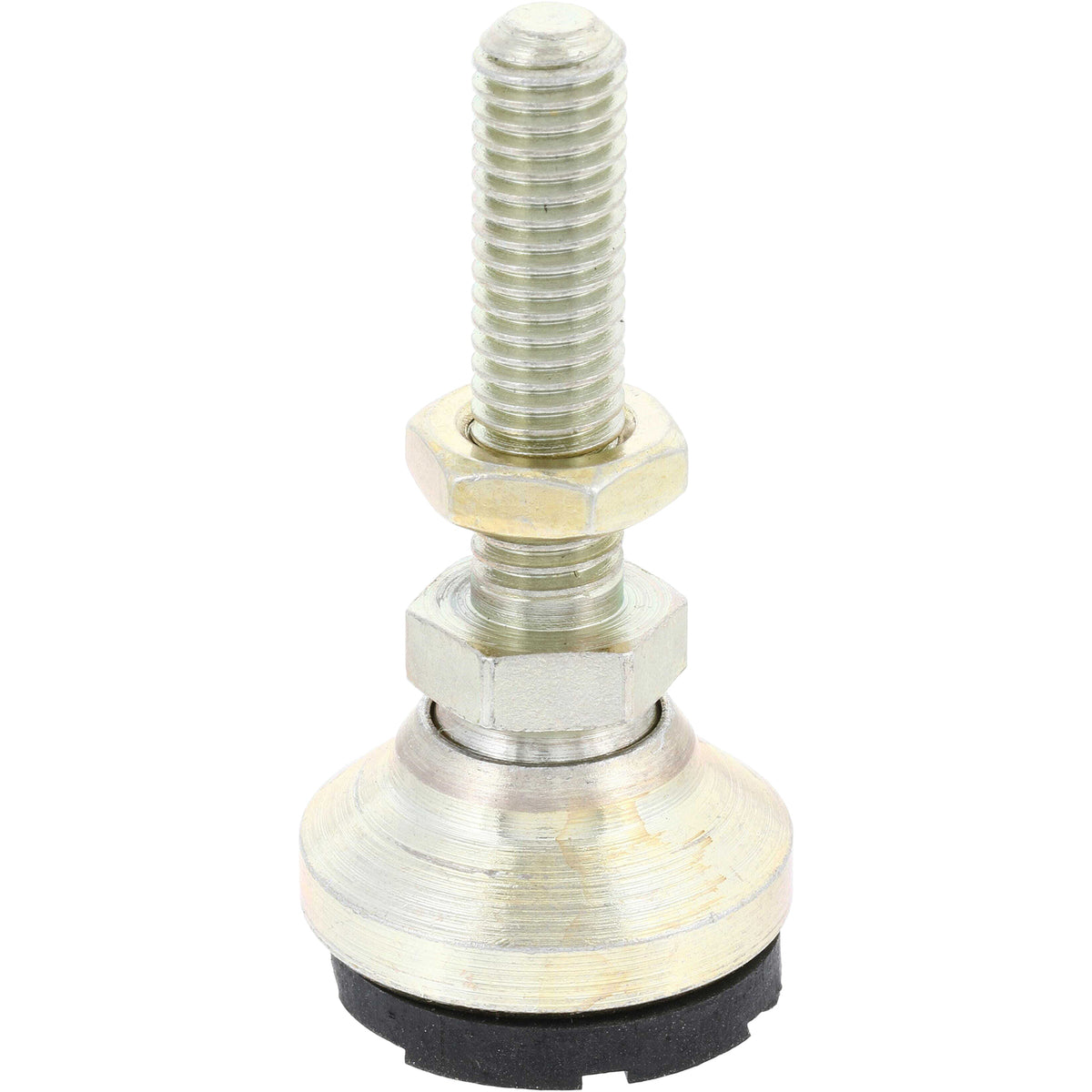

Yellow zinc-plated steel swivel leveling mount/foot with black rubber cushion and 32 mm long M8 threaded stud on white background.

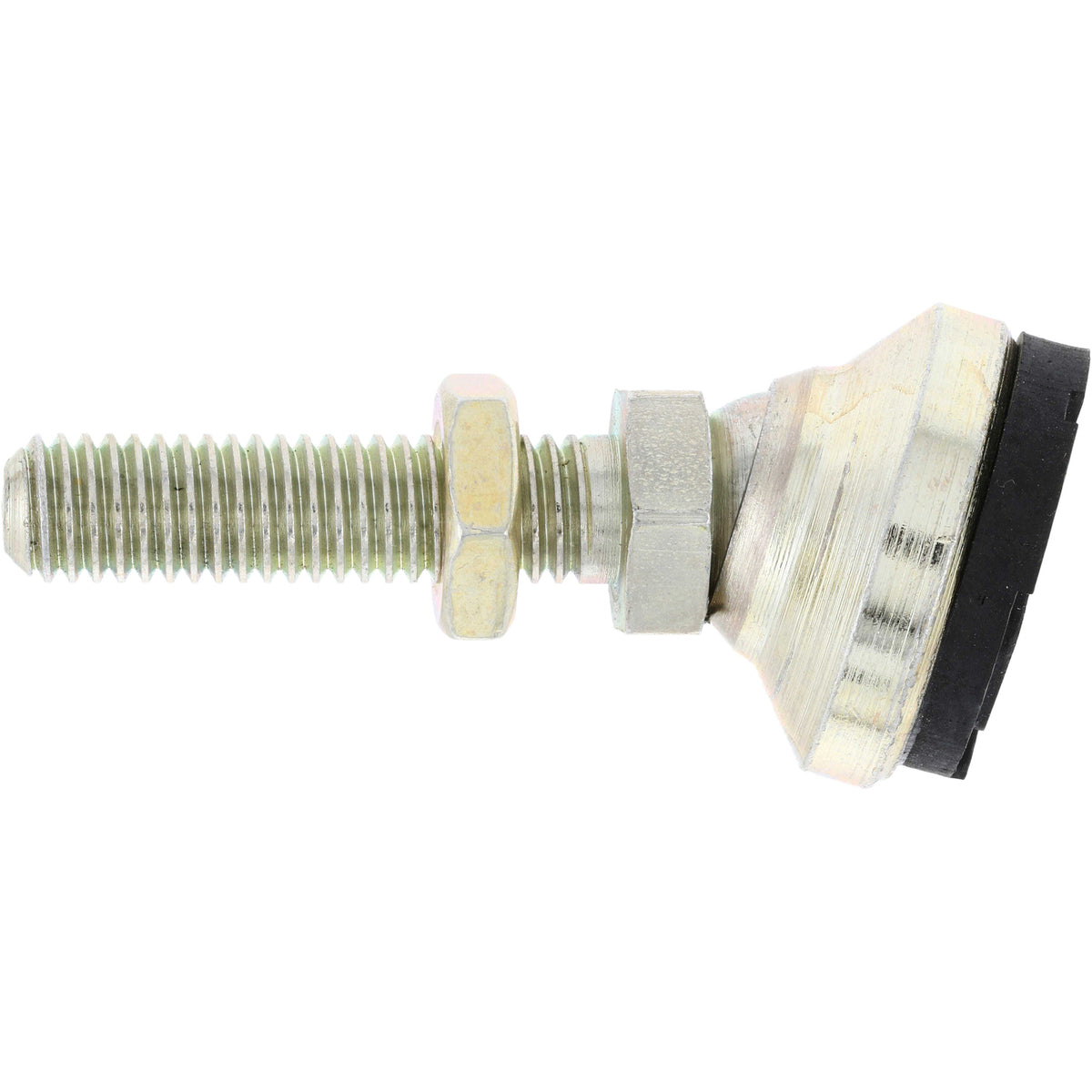

Yellow zinc-plated steel swivel leveling mount/foot with black rubber cushion and 32 mm long M8 threaded stud on white background.

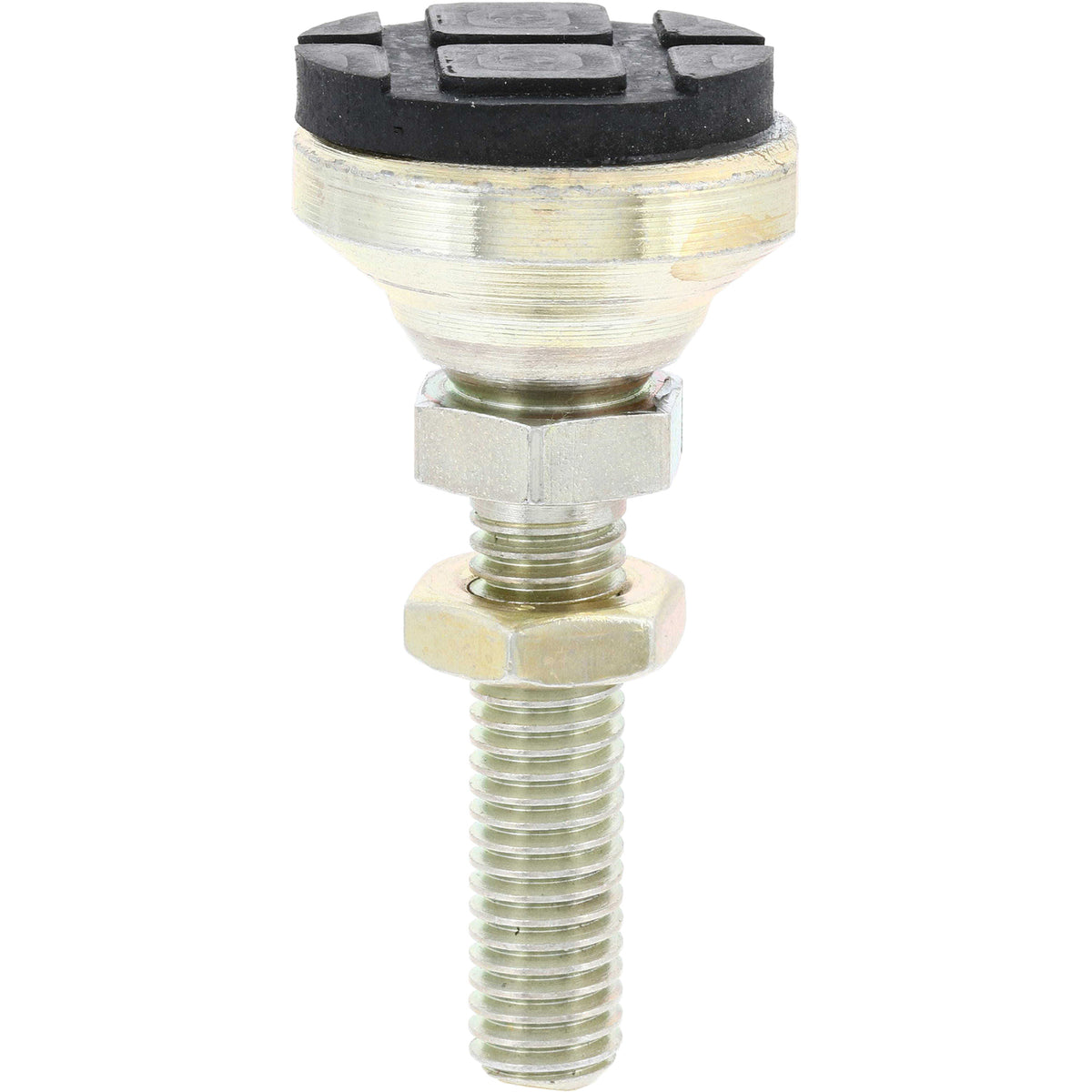

Yellow zinc-plated steel swivel leveling mount/foot with black rubber cushion and 32 mm long M8 threaded stud on white background.

This swivel leveling foot is used on all V1 Gosling Rinser Boxes. Specs: Mount Movement: Swivel Mount Type: Threaded Stud Thread Size: M8 Thread Pitch: 1.25mm Thread Length: 1/26″ (32mm) Capacity per…

This swivel leveling foot is used on all V1 Gosling Rinser Boxes.

Specs:

  • Mount Movement: Swivel
  • Mount Type: Threaded Stud
  • Thread Size: M8
  • Thread Pitch: 1.25mm
  • Thread Length: 1/26″ (32mm)
  • Capacity per Mount: 750 lbs. (340.19kg)
  • Swivel Range of Motion: 7.5°
  • Base Diameter: 0.98in (25mm)
  • Overall Height: 2.05in (52mm)
  • Base and Stud Material: Yellow Zinc-Plated Steel
