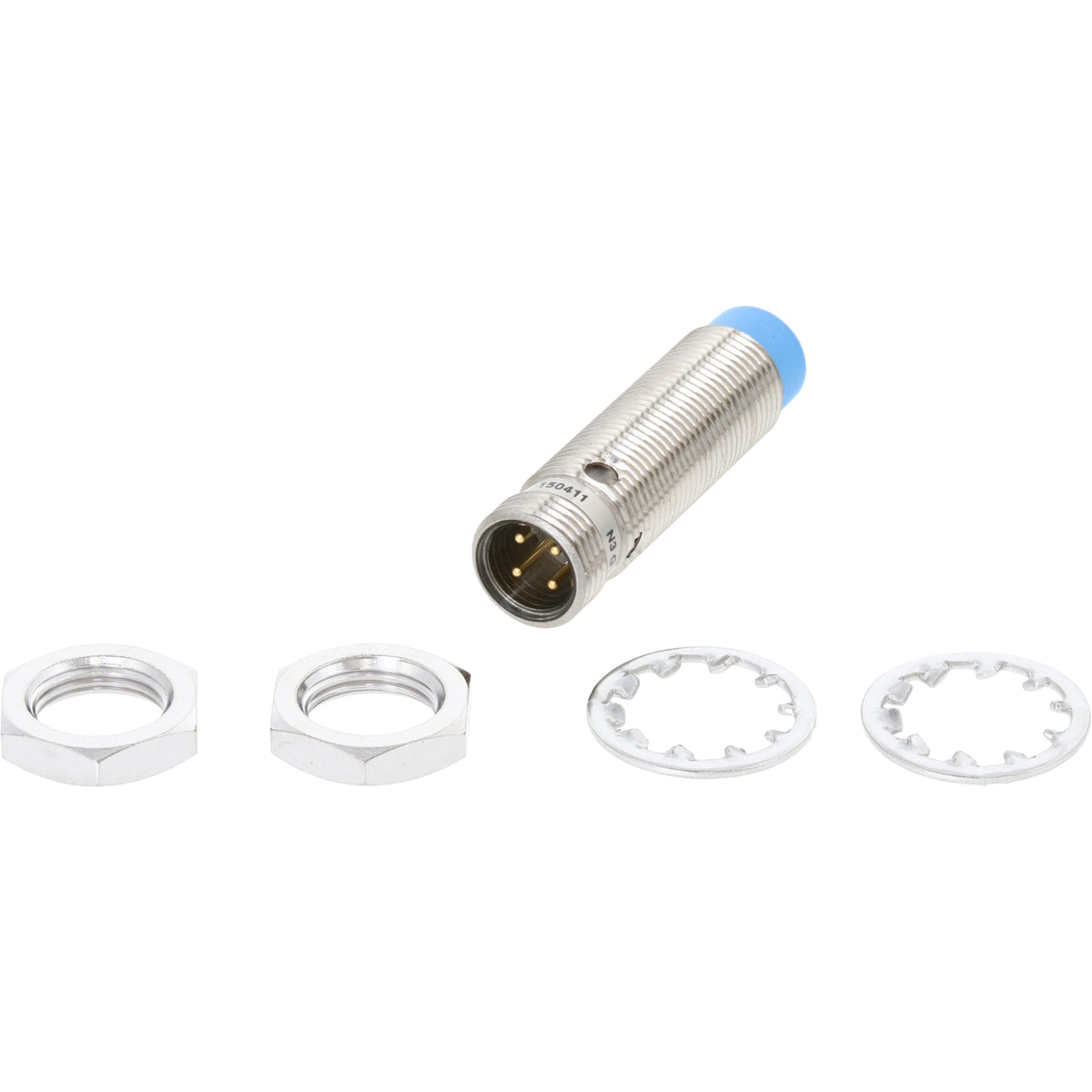

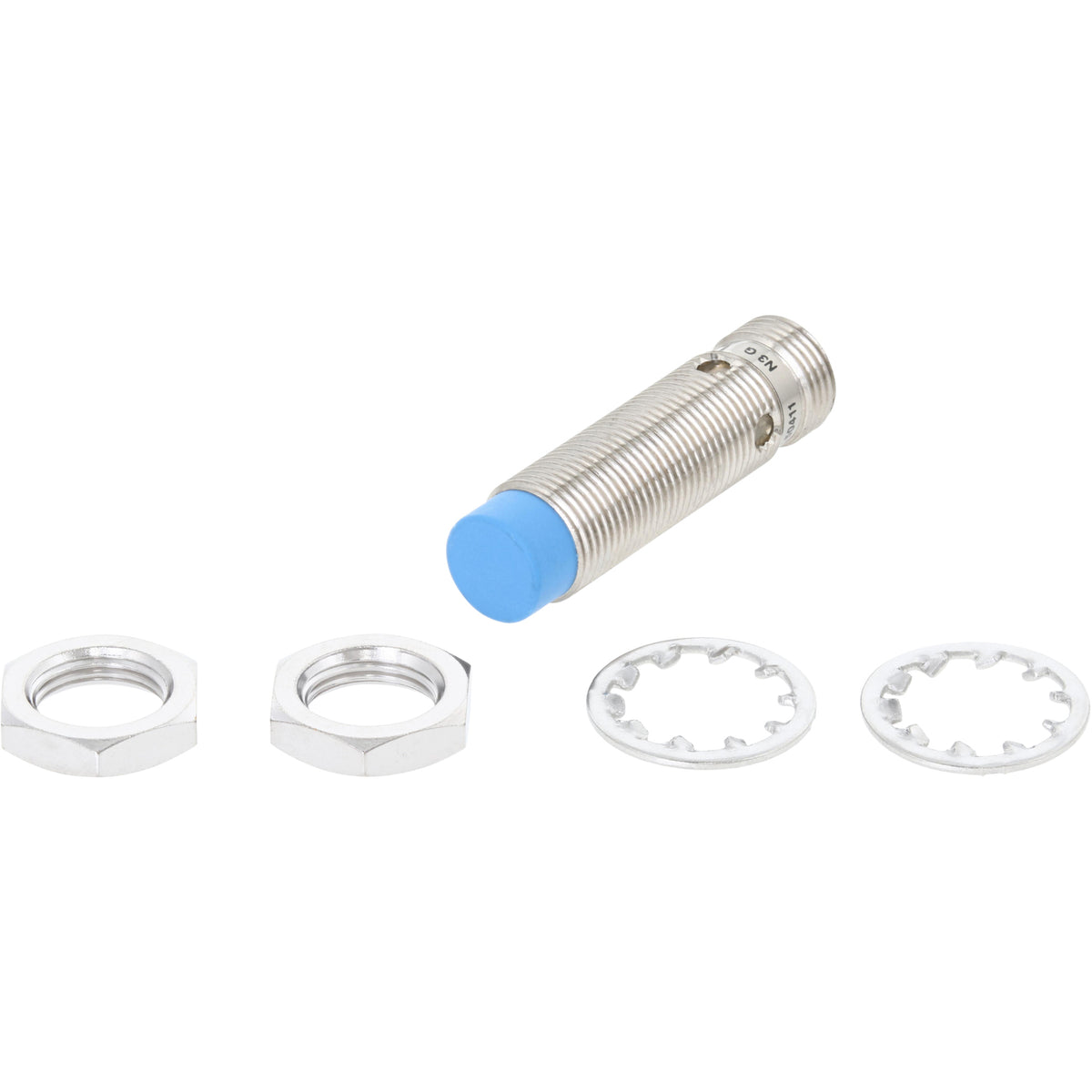

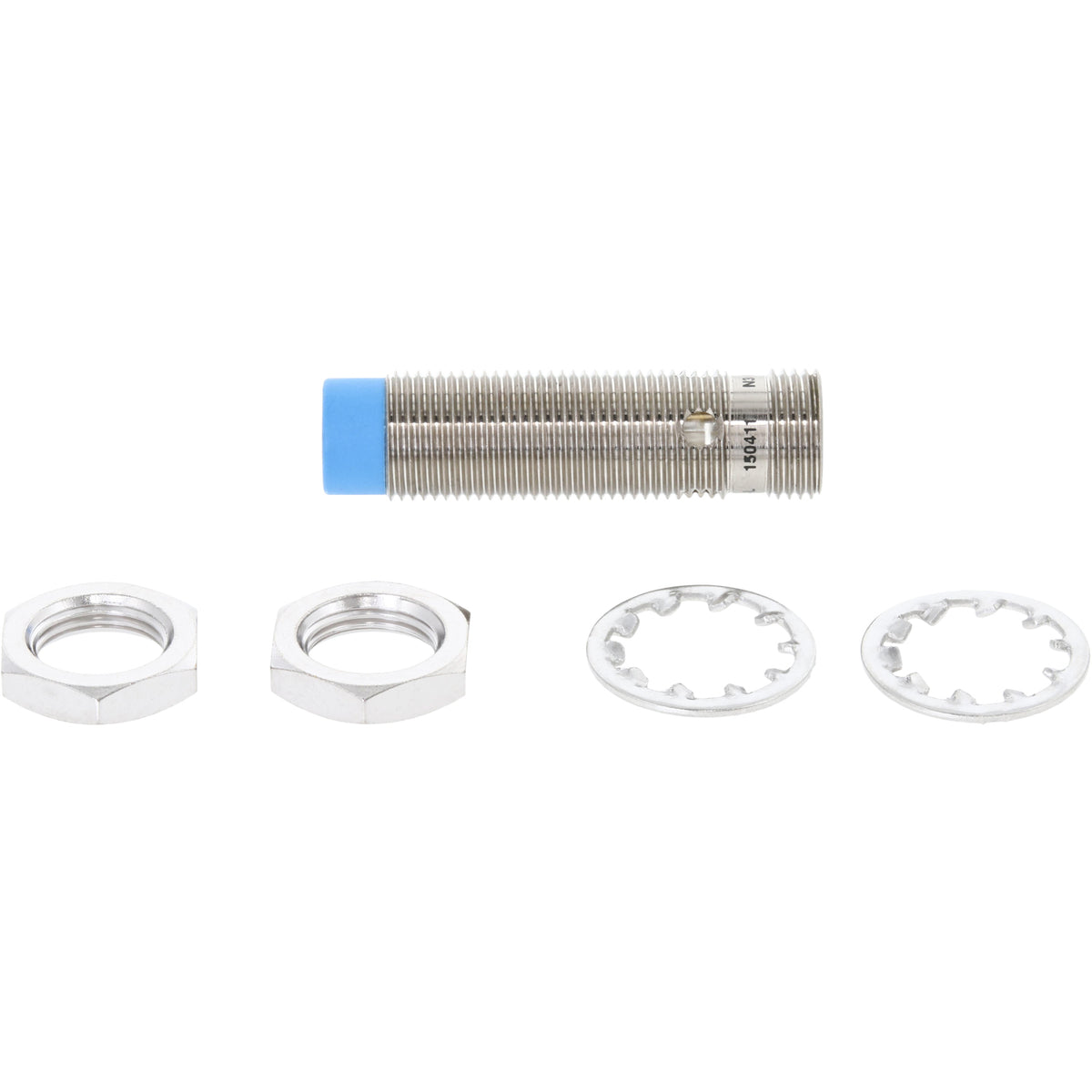

This proximity sensor is used on EARLY model Gosling canning systems and is used to detect the presence of a can at both the CO2 Purge Tube and Fill Head.

This proximity sensor is used on EARLY model Gosling canning systems and is used to detect the presence of a can at both the CO2 Purge Tube and Fill Head.

It comes with two hex nuts that allow for precision positioning on the mounting brackets.

**Note: This sensor has been upgraded. Click here for the current sensor. Additional parts may be needed. Please reach out to our customer service team for more information.

Features:

• With standard switching distance
• For DC voltage
• Round design

Specs:

• Rated operating distance: 4 mm
• Assured operating distance: 3.24 mm
• Repetition accuracy under constant conditions: 0.2 mm
• Hysteresis: ≤0.36 mm
• Max. switching frequency: 2000 Hz
• Max. output current: 200 mA
• Voltage drop: ≤2 V
• DC operating voltage range: 10 V … 30 V
• Residual ripple: ± 10%
• Idle current: ≤10 mA
• Electrical connection: 3-pin M12x1 Plug
• Housing material: Brass PBTP Nickel-plated
• Degree of protection: IP65 IP67
