G1/8 to 6mm Push In “L” Fitting

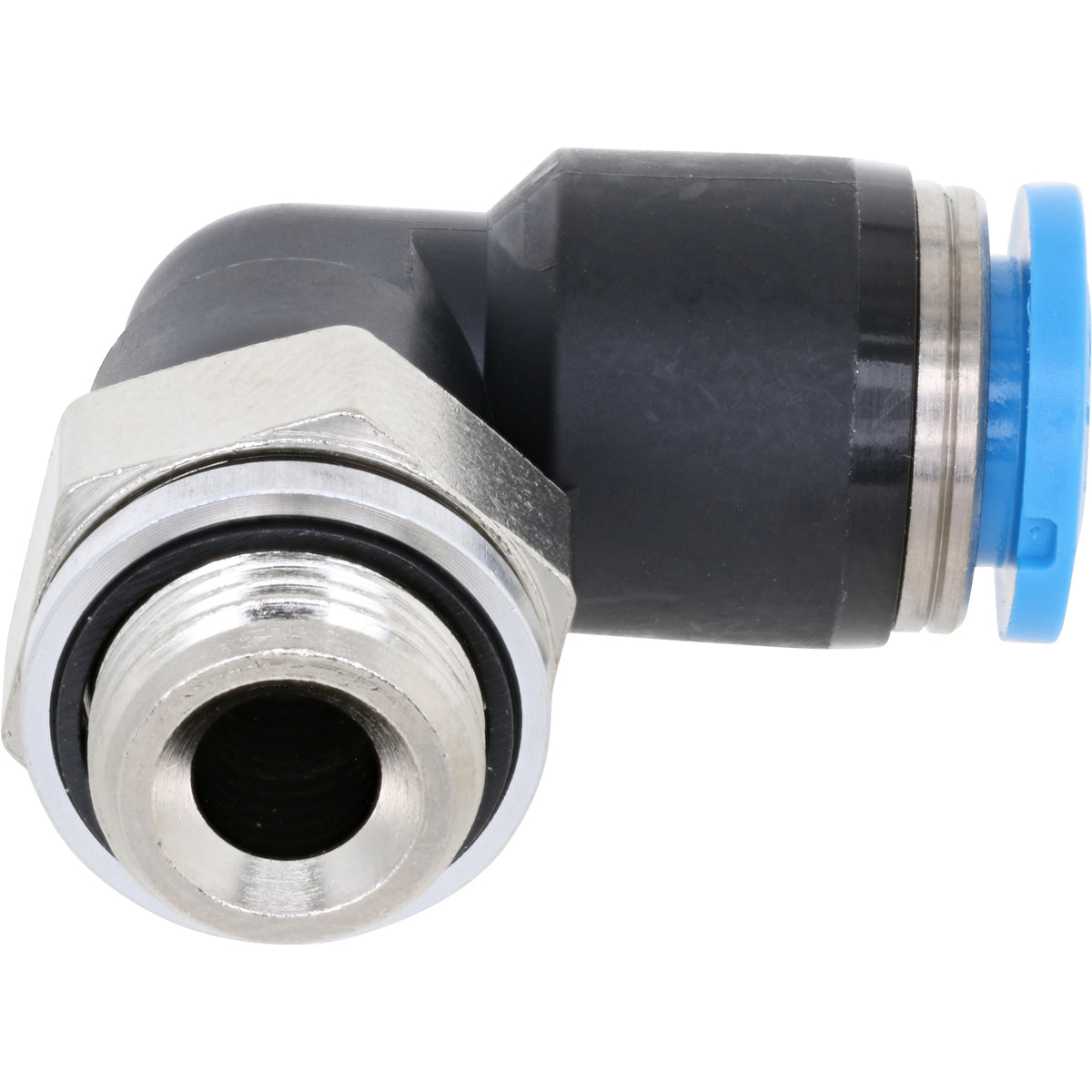

Black and blue plastic air fitting with stainless threads on white background.

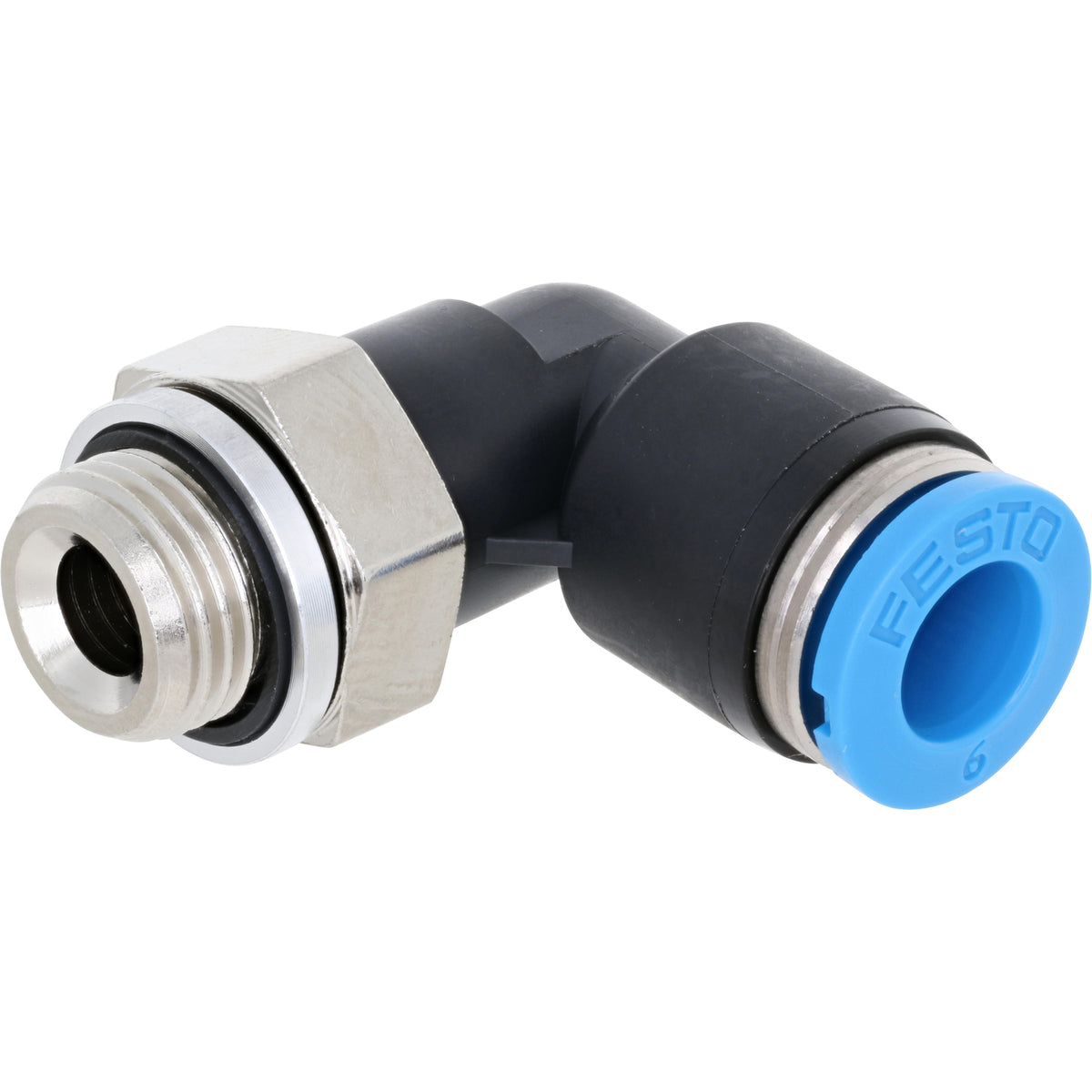

Black and blue plastic air fitting with stainless threads on white background.

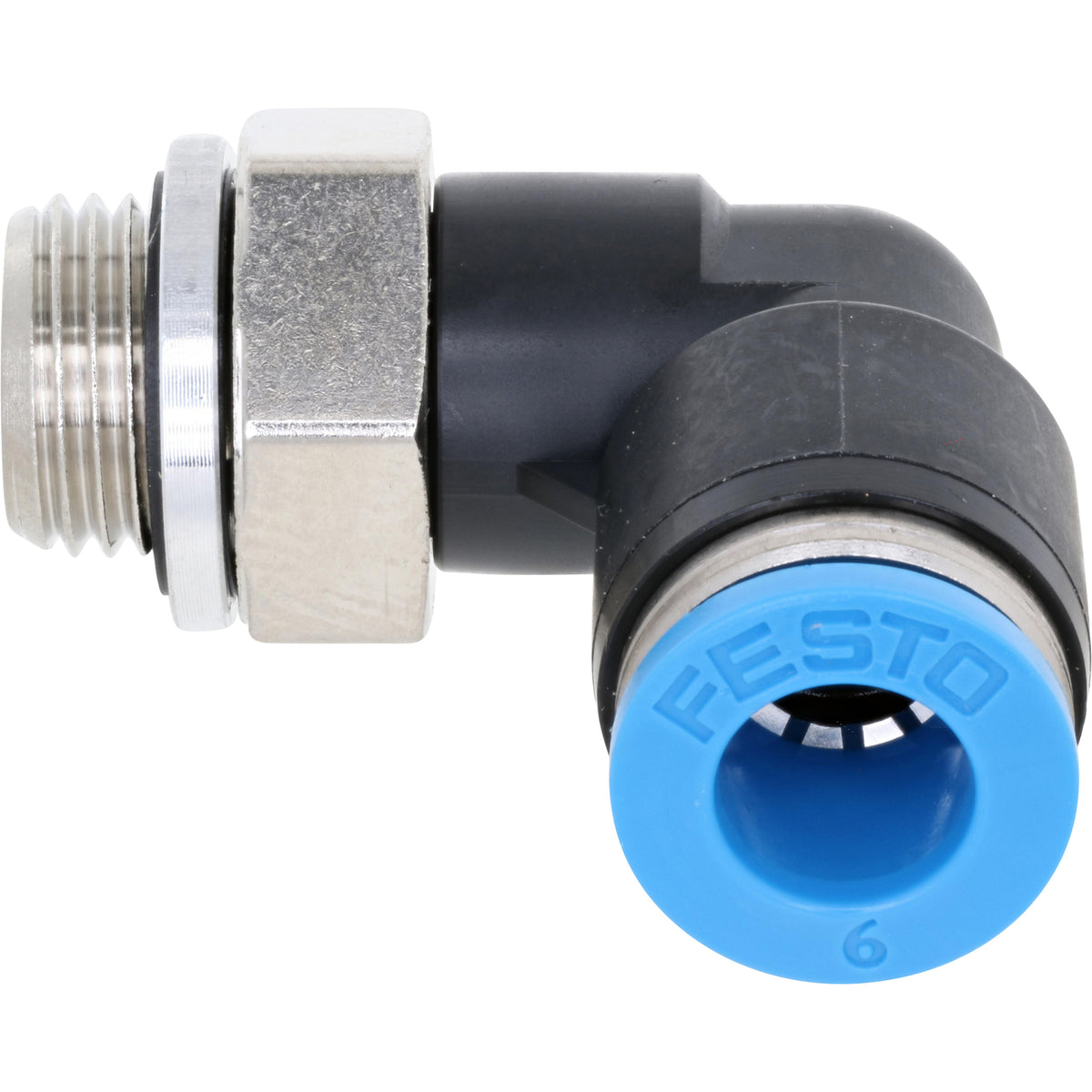

Black and blue plastic air fitting with stainless threads on white background.

This Push in L-fitting is used with Seam Lift Cylinders found on current seamers as we as rotary cylinders on Gosling and Quick Change seamers.

This Push in L-fitting is used with Seam Lift Cylinders found on current seamers as we as rotary cylinders on Gosling and Quick Change seamers.

  • Standard series
  • Wide range of variants: large selection for maximum flexibility in standard applications
  • PBT and nickel-plated brass
  • Structural design: Push-pull principle
  • Operating pressure for entire temperature range: -13.775 psi … 87 psi
  • Pneumatic connection 1: External thread G1/8
  • Pneumatic connection 2: For pneumatic tubing outside diameter 6 mm
  • Nominal tightening torque: 7 Nm
  • Tolerance for nominal tightening torque ± 20%
