Dump Valve Cable

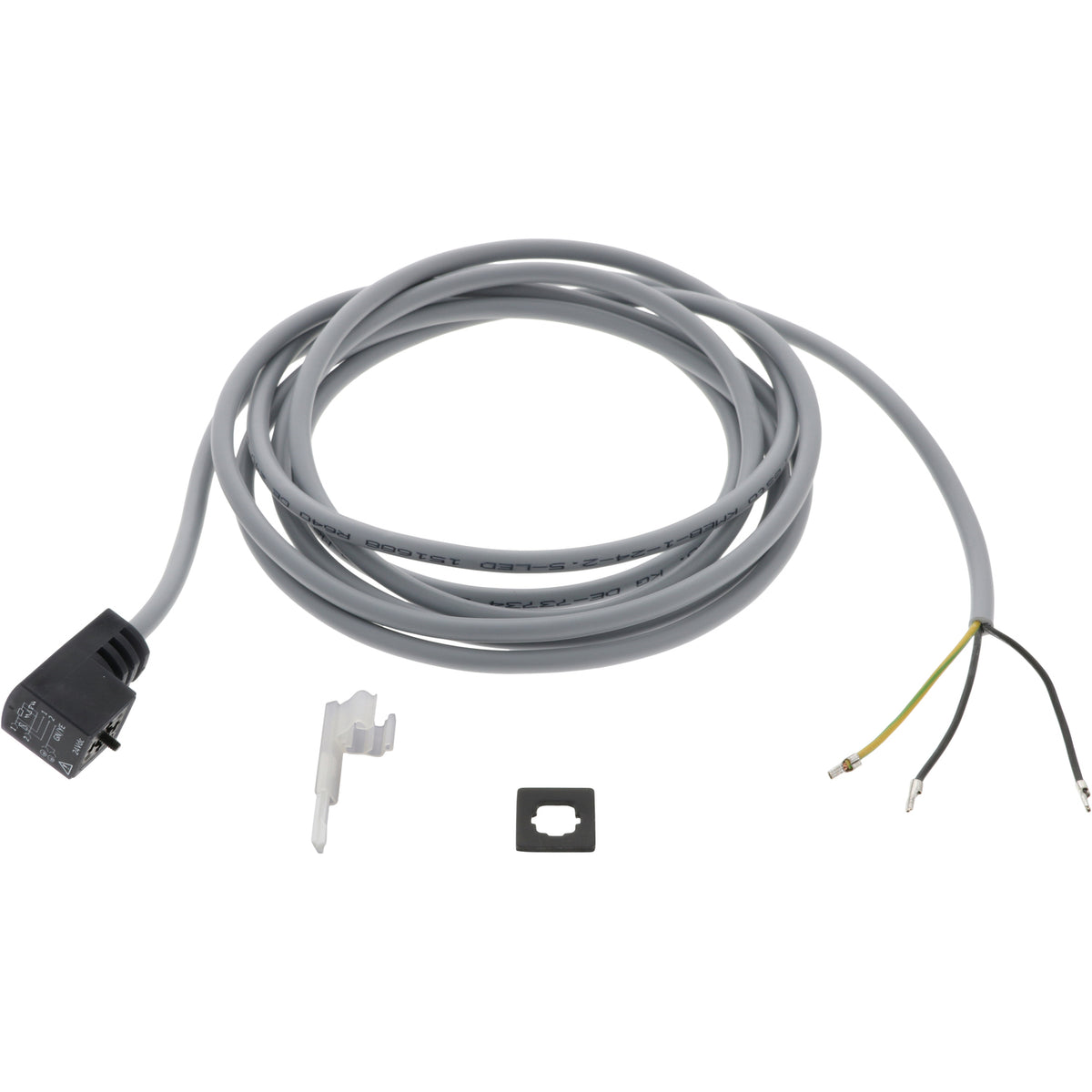

Grey coiled sensor cable with a black plug on one end and exposed wires on the other end. Shown on white background.

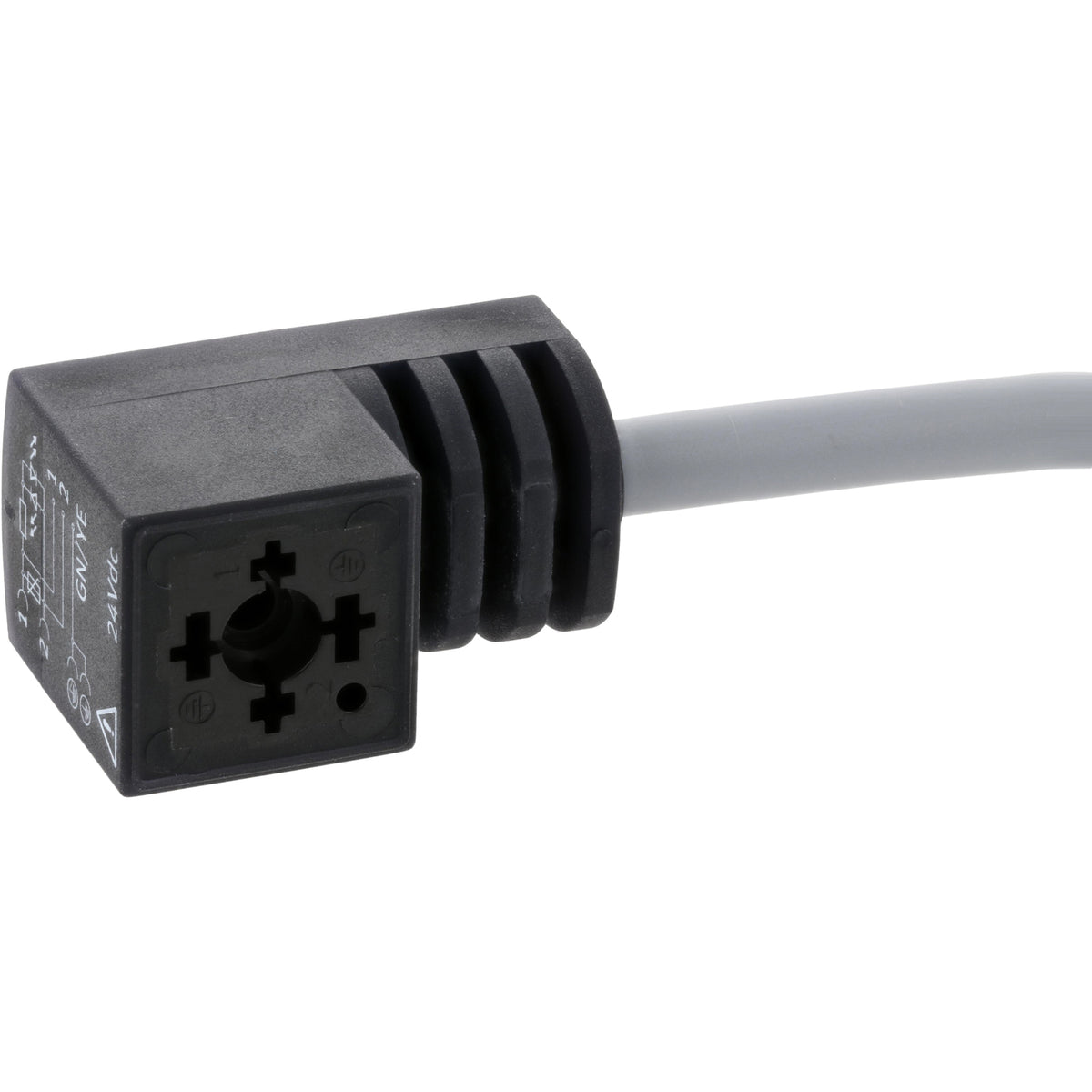

Black plastic plug connected to a grey cable on white background.

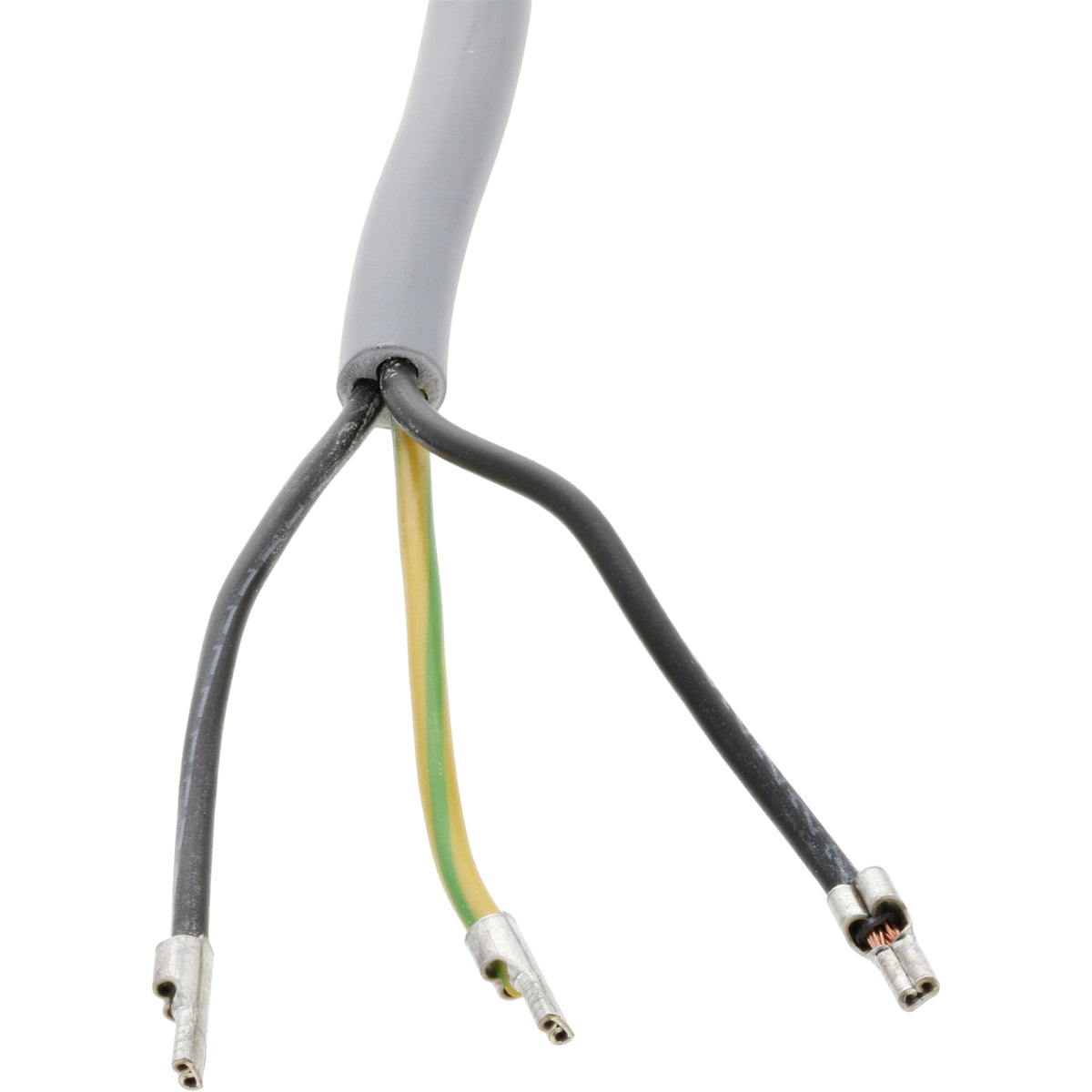

grey cable end with three exposed wires. There are two black wires and one wire that is yellow and green. The wires have ferules on them. Shown on white background.

This plug socket with cable (AKA Dump Valve Cable) is used with the Soft Start Valve on all Wild Goose Filling canning systems.

This plug socket with cable (AKA Dump Valve Cable) is used with the Soft Start Valve on all Wild Goose Filling canning systems.

Specs:

  • Degree of protection: IP65 as per IEC 60529
  • Signal status display: LED yellow
  • Wire ends: Cable end sleeve
  • Ambient temperature: -4 °F…176 °F (-20 °C … 80 °C)
  • Nominal operating voltage: DC 24 V
  • Electrical connection 1, number of pins/wires: 3
  • Electrical connection 2, number of pins/wires: 3
  • Cable length: 2.5 m
  • Cable diameter: 5.2 mm
  • Mounting position: Any
  • Corrosion resistance class: (CRC) 1 – Low corrosion stress
