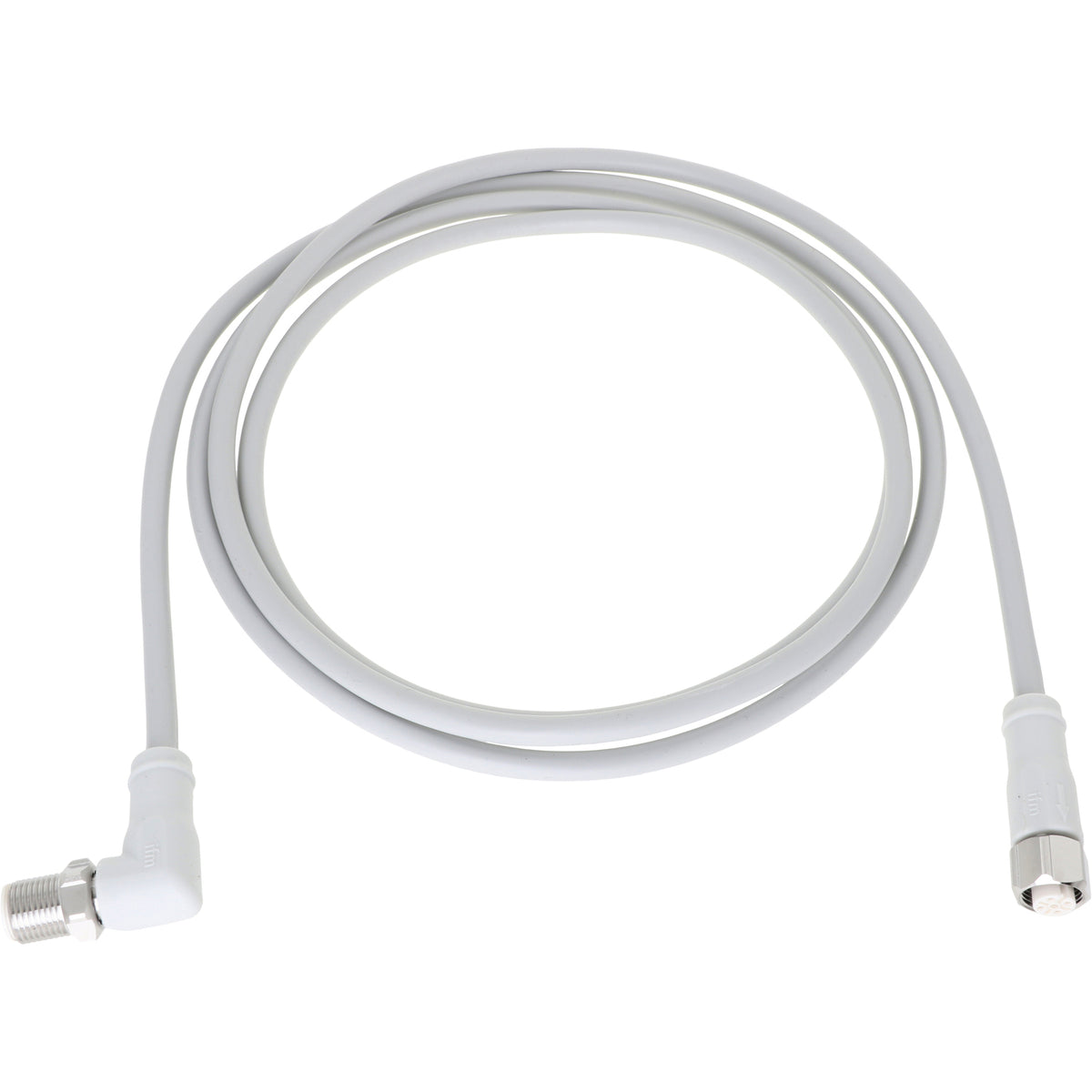

This connection cable is used with Fusion counter pressure systems.

• For use in sanitary and wet areas in the food industry
• Permanent, reliable sealing even when mounted without tools
• Cable jacket made of halogen-free and flame-retardant material
• Vibration and shock resistant thanks to coupling ring with locking mechanism
• Large cable cross-section for reducing the voltage drop and transferring higher currents

Application

• System: Free from silicone; Halogen-free; gold-plated contacts; Drag chain suitability
• Application: sanitary and wet areas in the food industry
• Free from silicone

Electrical data

• Operating voltage [V]: < 250 AC / < 300 DC
• Protection class: ll
• Max. current load total [A]: 4

Operating conditions

• Ambient temperature [°C]: -25…100
• Ambient temperature (moving) [°C]: 0…100
• Protection: IP 65; IP 67; IP 68; IP 69K

Mechanical data

• Weight [g]: 163.7
• Dimensions [mm]: 35.5 x 15.5 x 38
• Length [m]: 2
• Material: PP Halogen-free; sealing: EPDM
• Molded-body material: PP
• Material nut: stainless steel (1.4404 / 316L)
• Drag chain suitability: yes
