Connecting Cable (w/ RJ45) – 5m (16.4′)

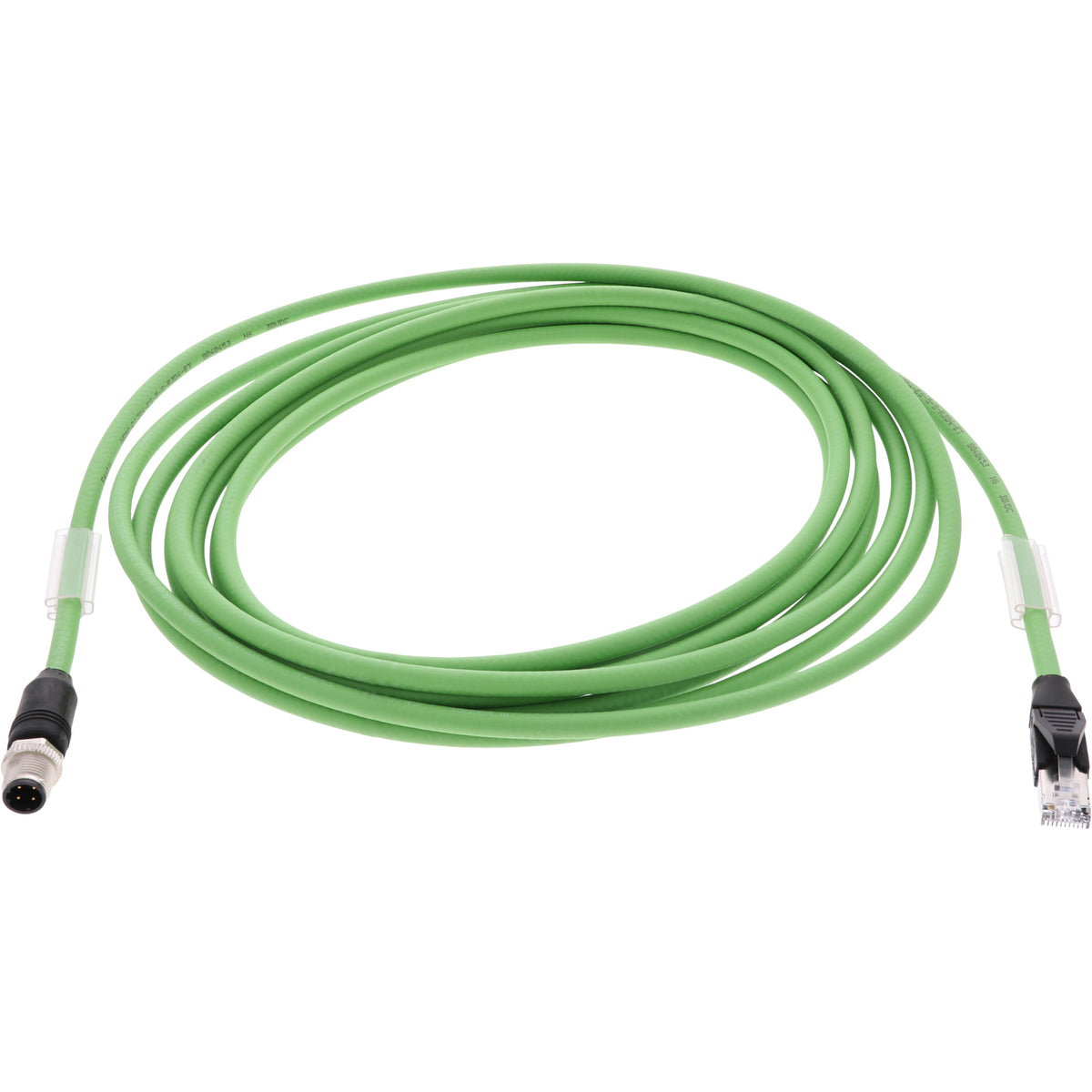

Green 5 meter connecting cable with nickel-plated, four-pin male connector on one end and an RJ45 plug on the other. Cable shown on white background.

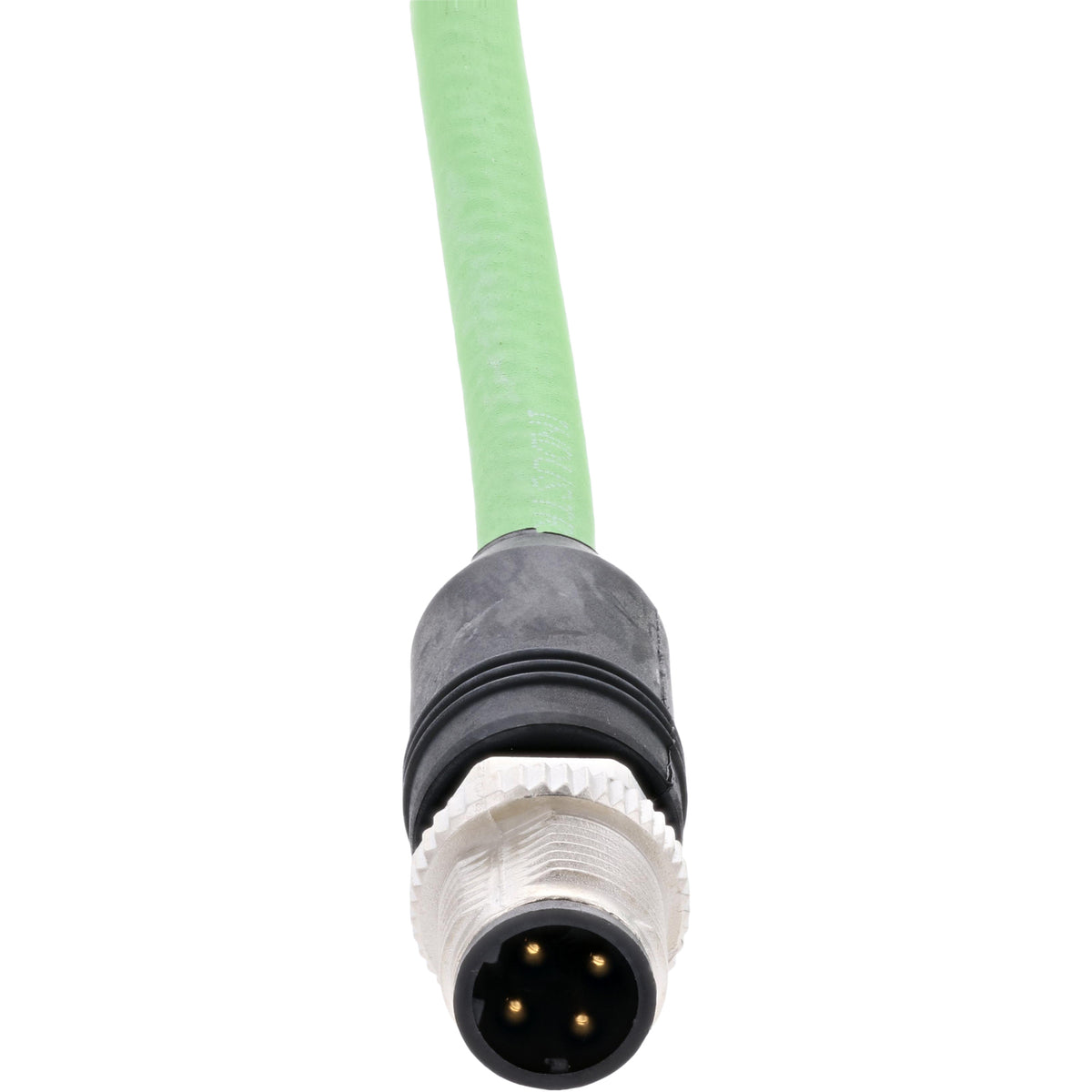

Green connecting cable with nickel-plated four-pin male connector on white background.

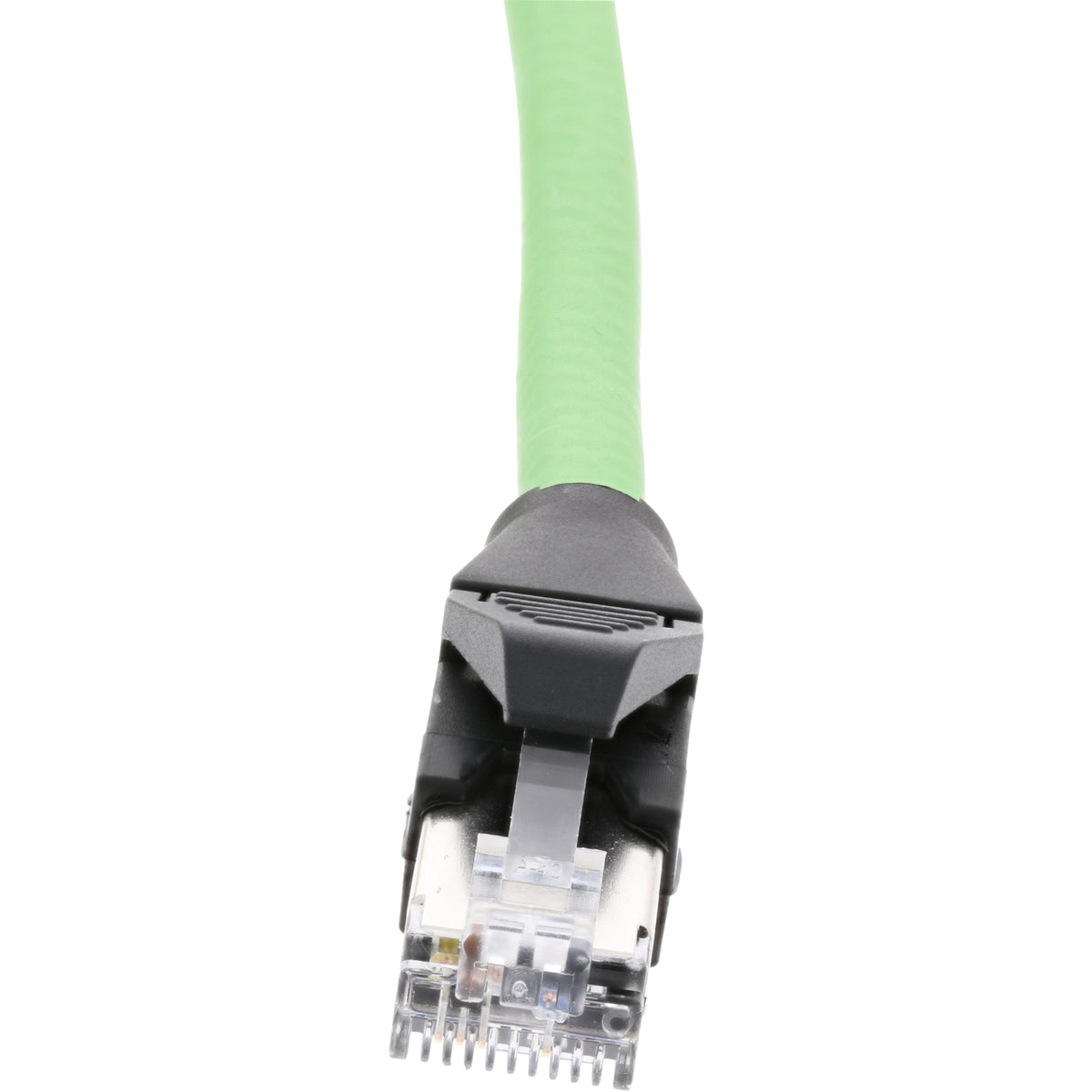

Green connector cable with RH45 plug on white background.

This four pin connecting cable is 5m (16.4 ft) and is used with all Fusion systems. It has a molded straight M12x1 threaded male connection on one end and a snap-locking RJ45 plug on the other.

This four pin connecting cable is 5m (16.4 ft) and is used with all Fusion systems.

It has a molded straight M12x1 threaded male connection on one end and a snap-locking RJ45 plug on the other.

Specs:

  • DC operating voltage range: 0 V … 30 V
  • Current rating at 40° C: 1.3 A
  • Surge resistance: 0.8 kV
  • Ethernet cable specification Type: CAT.5
  • Cable diameter: 6.7 mm
  • Material of screw-type lock: Brass, nickel-plated
  • Cable characteristic: Suitable for energy chains
