Connecting Cable – 0.3m (11.81″)

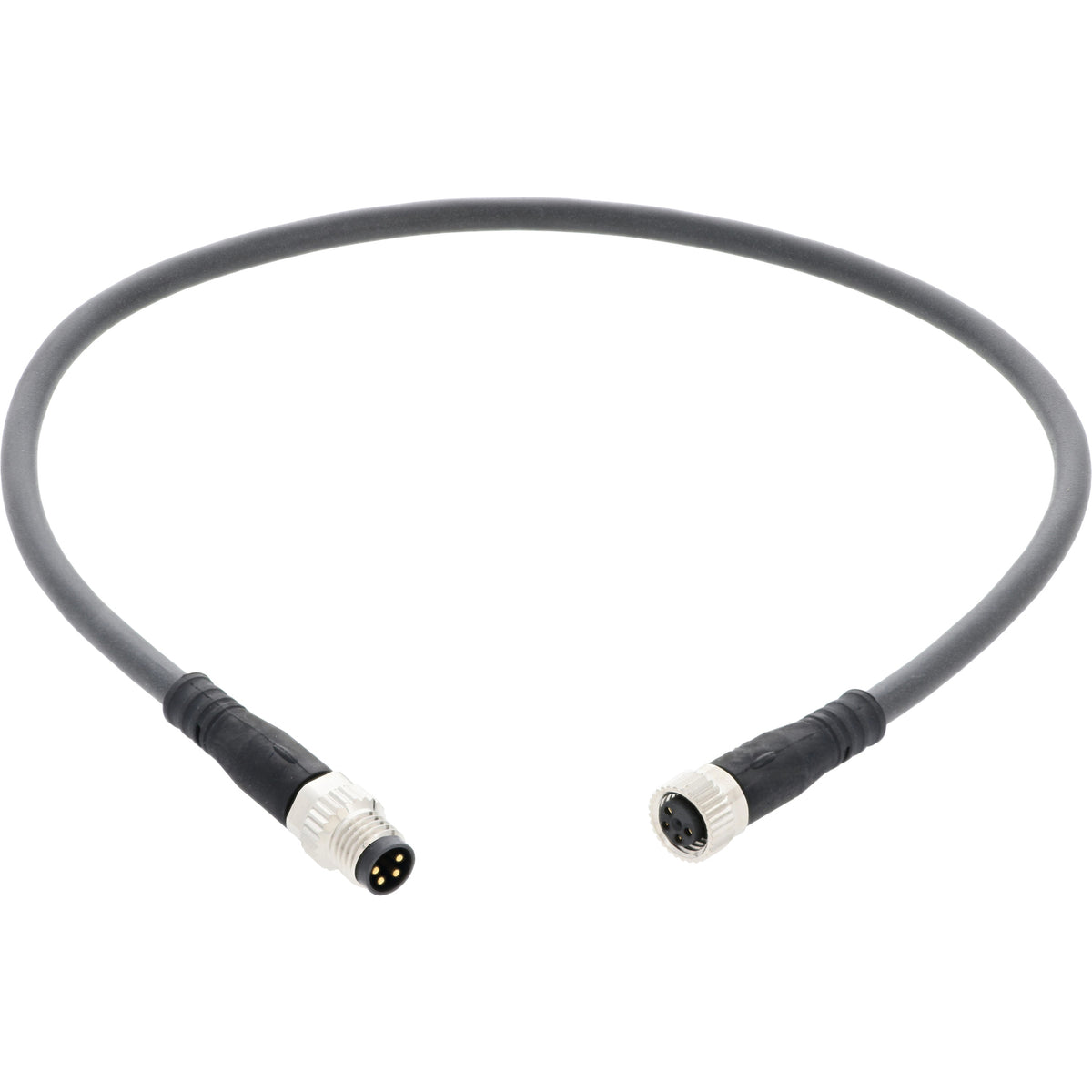

Dark grey connecting cable with nickel plated four pin male connector on one end and a nickel plated four pin female connector on the other. Cable shown on a white background.

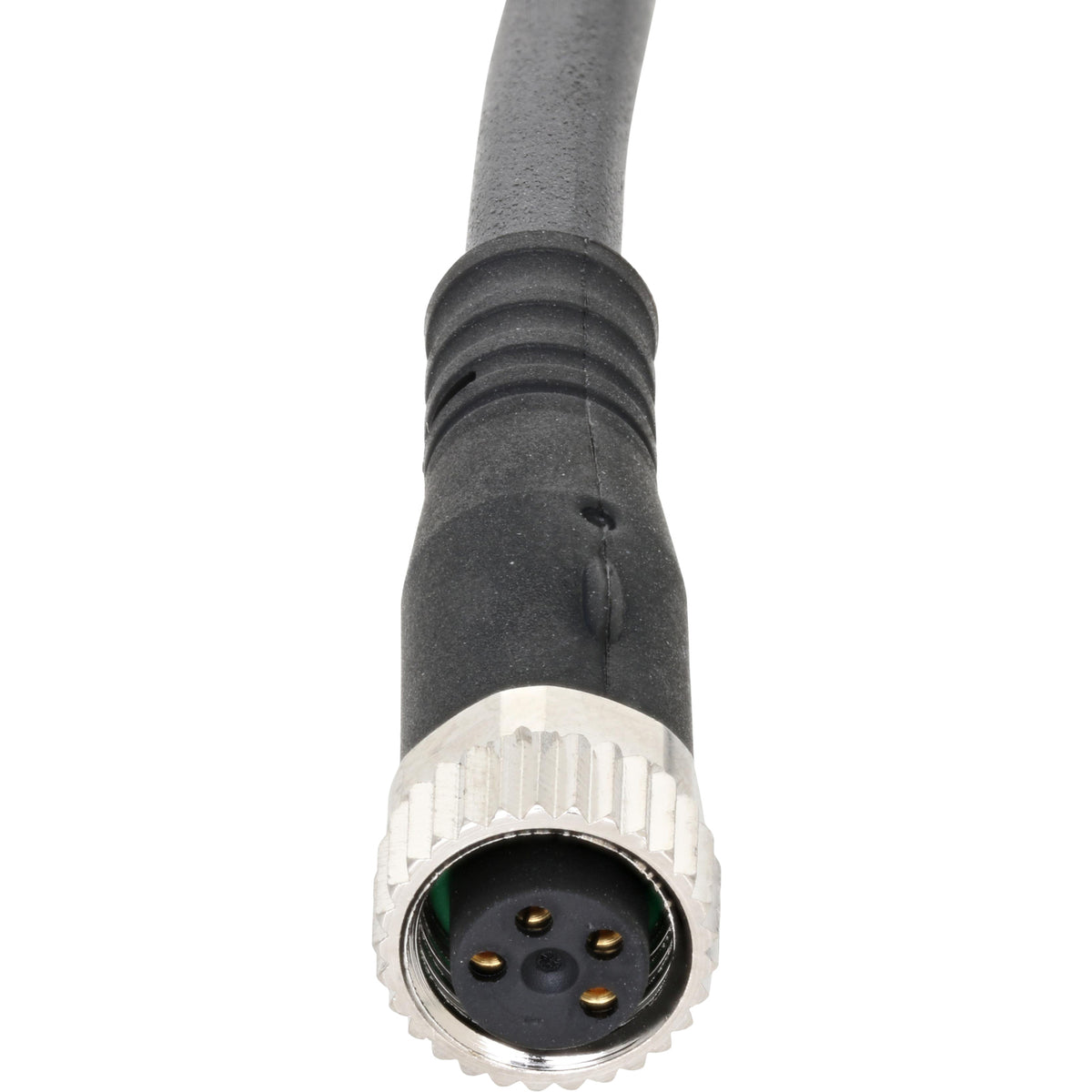

Dark grey connecting cable with nickel plated four pin female connector on white background.

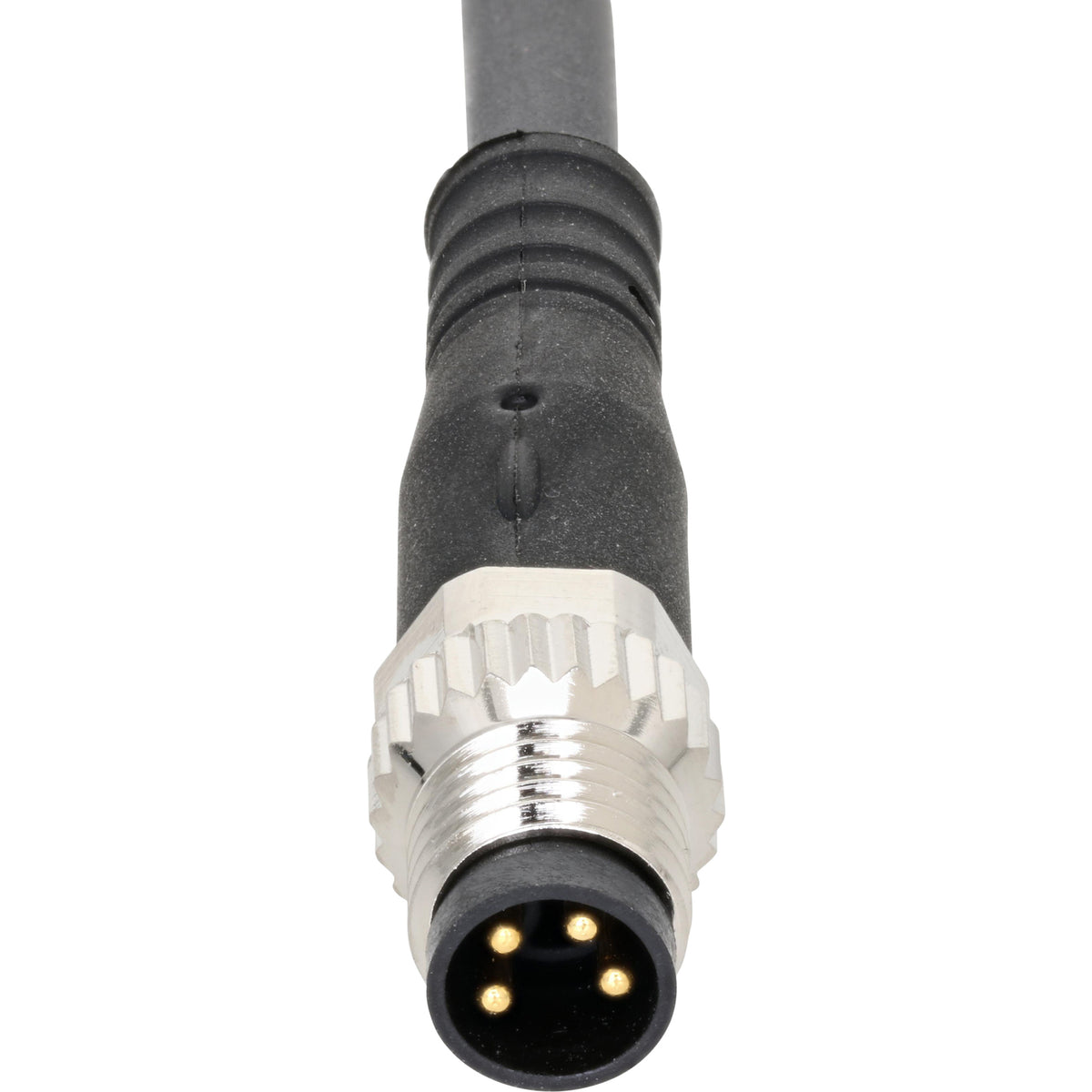

Dark grey connecting cable with nickel plated four pin male connector on white background.

This four pin connecting cable is 0.3 m (11.81 in) and is used with all Fusion systems.

This four pin connecting cable is 0.3 m (11.81 in) and is used with all Fusion systems.
It has a molded straight M8x1 threaded male connection on one end and a straight M8x1 threaded female connection on the other.

  • For power supply
  • Suitable for energy-chains

Specs:

  • DC operating voltage range: 0 V … 30 V
  • Nominal operating voltage DC: 24 V
  • Operating voltage range AC: 0 V … 30 V
  • Nominal operating voltage AC: 24 V
  • Current rating at 40° C: 5.2 A
  • Surge resistance: 0.8 kV
  • Protective earth connection: Not available
  • Shield: no
  • Cable diameter: 4.8 mm
  • Material of screw-type lock: Brass, nickel-plated
