Bottle Detection Sensor

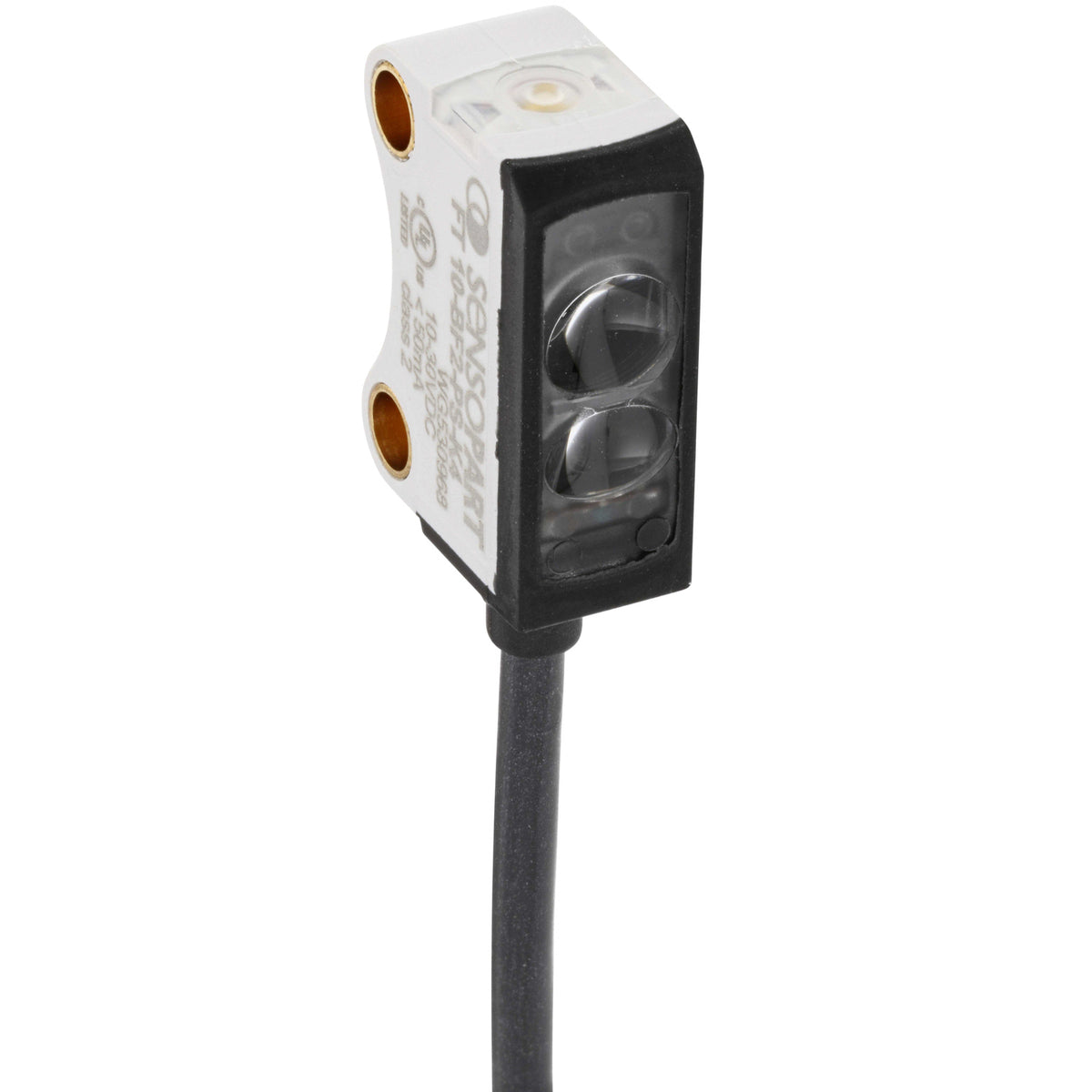

White and black photo sensor with black cable on white background.

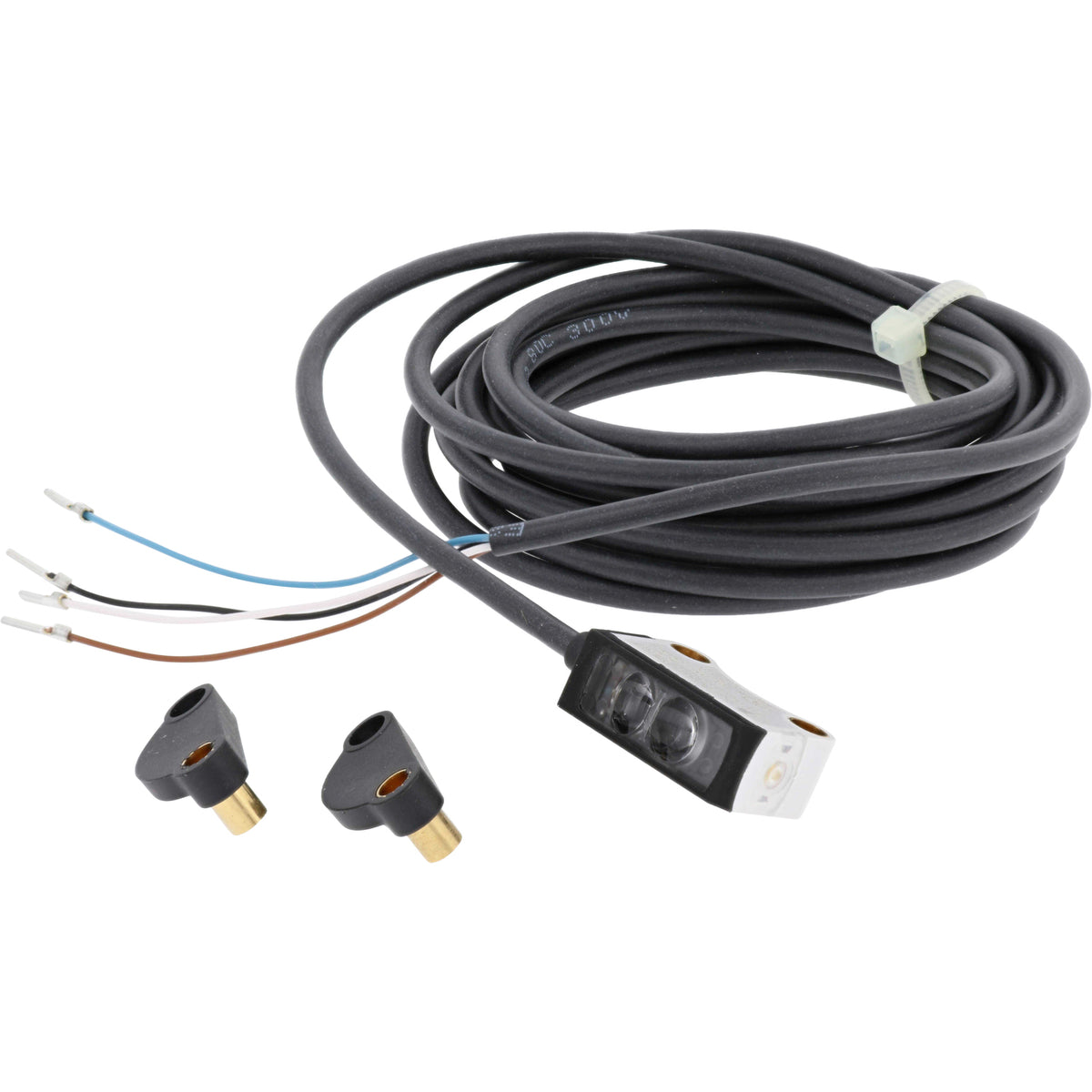

Coiled black sensor cable with black and white photo sensor on one end and four exposed wires (blue, black, white, brown) on the other end. Two mounting brackets are placed nearby. Parts shown on white background.

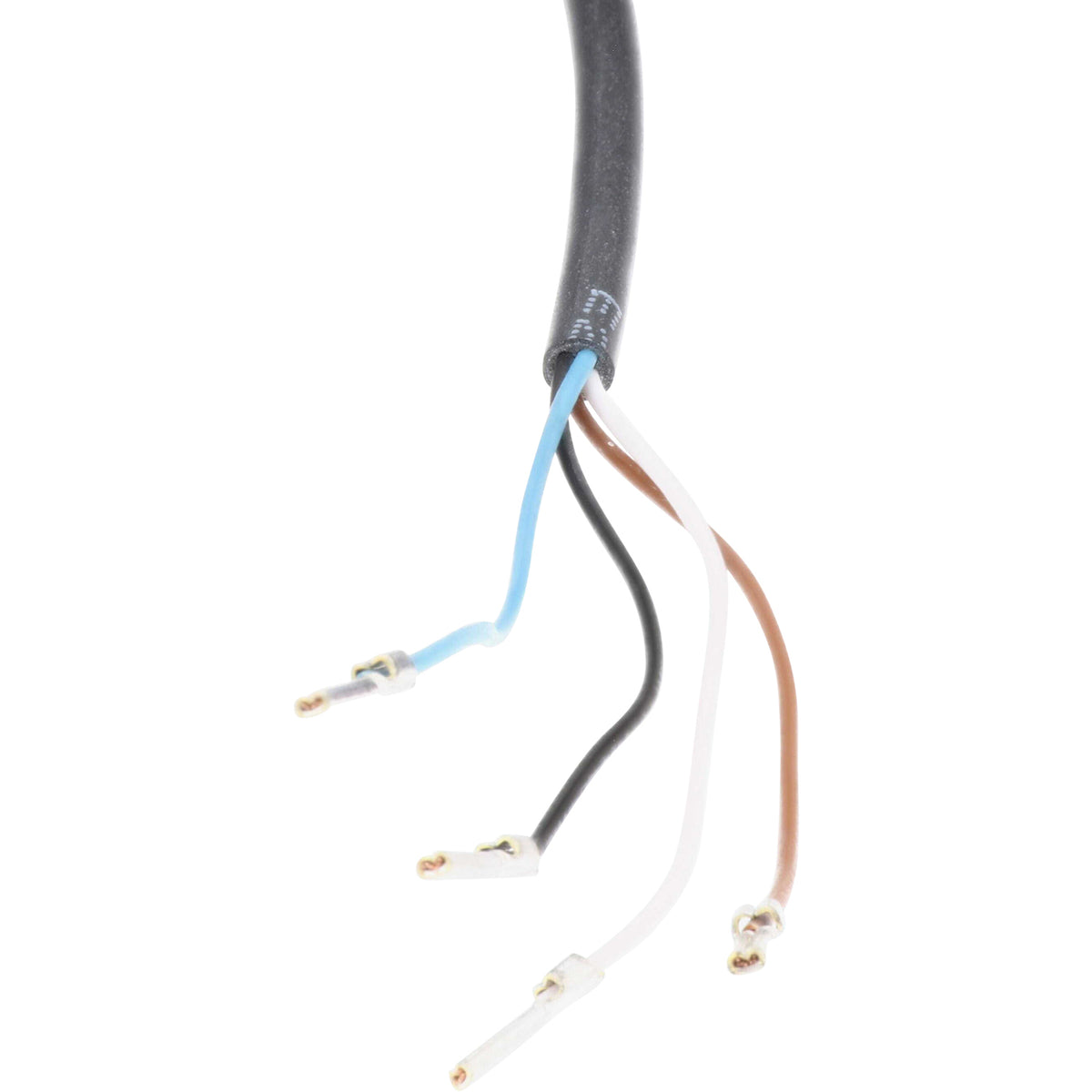

Black cable with exposed blue, black, white and brown wires on white background.

These bottle detection sensors are used on Meheen M2, M4 and M6 bottling systems manufactured after 2/1/19. Retrofit bottle detection assemblies are available for machines made before 2/1/19.

These bottle detection sensors are used on Meheen M2, M4 and M6 bottling systems manufactured after 2/1/19.

Retrofit bottle detection assemblies are available for machines made before 2/1/19. Please contact our customer service team for more information.

Specs:

  • Sensor type: Photoelectric diffuse sensor with Background Suppression
  • Working distance min.: 0.08in (2mm)
  • Working distance max.: 1.18in (30mm)
  • Velocity [Hz]: 1000
  • Adjustment: Control input
  • Light source: LED, blue
  • Switching output: PNP
  • Temperature range [°C]: -20…+50
  • Enclosure rating: IP67
