6mm to G1/8 Non Stainless Flow Control

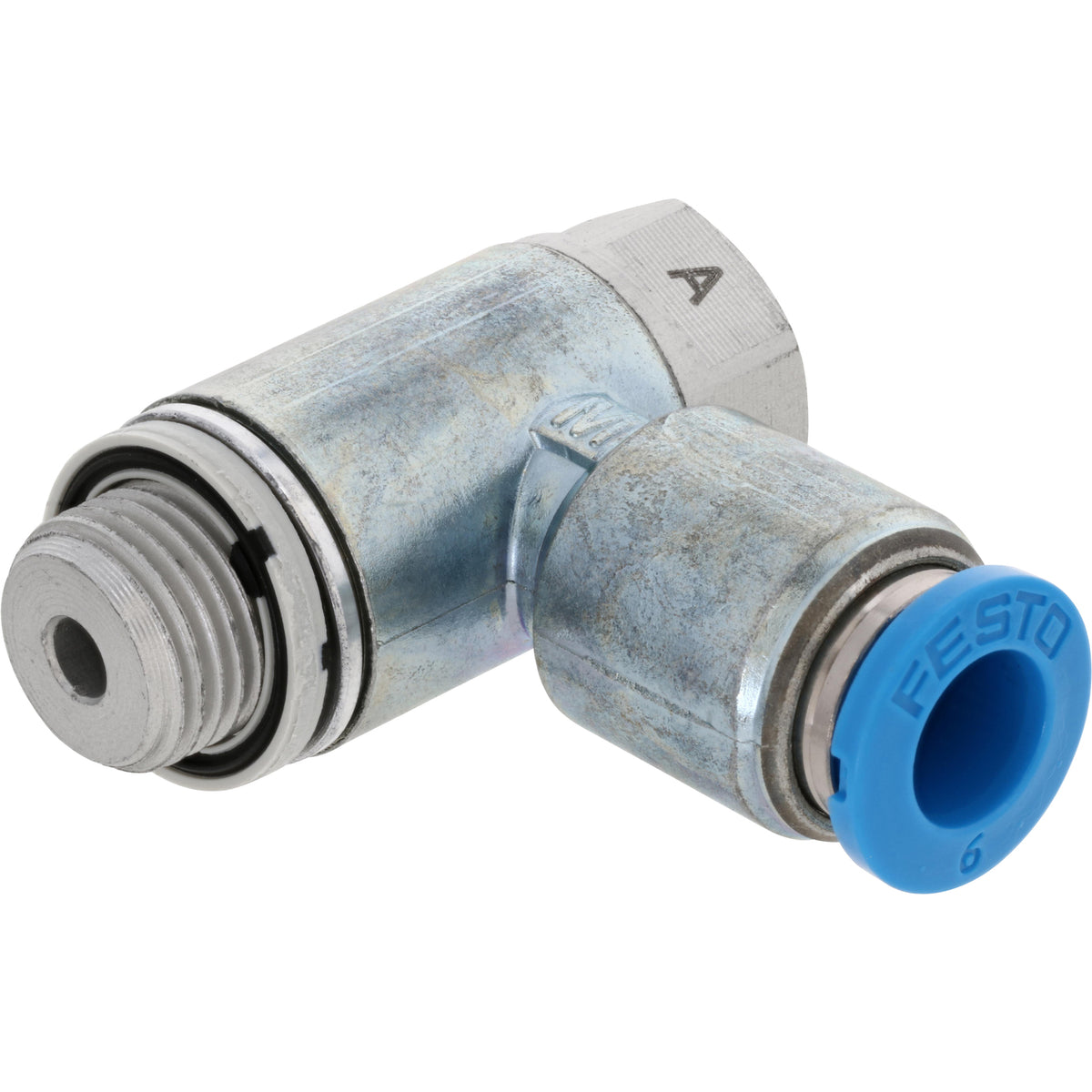

One-way flow control valve with blue press connect collar and exposed threads. Part shown on white background.

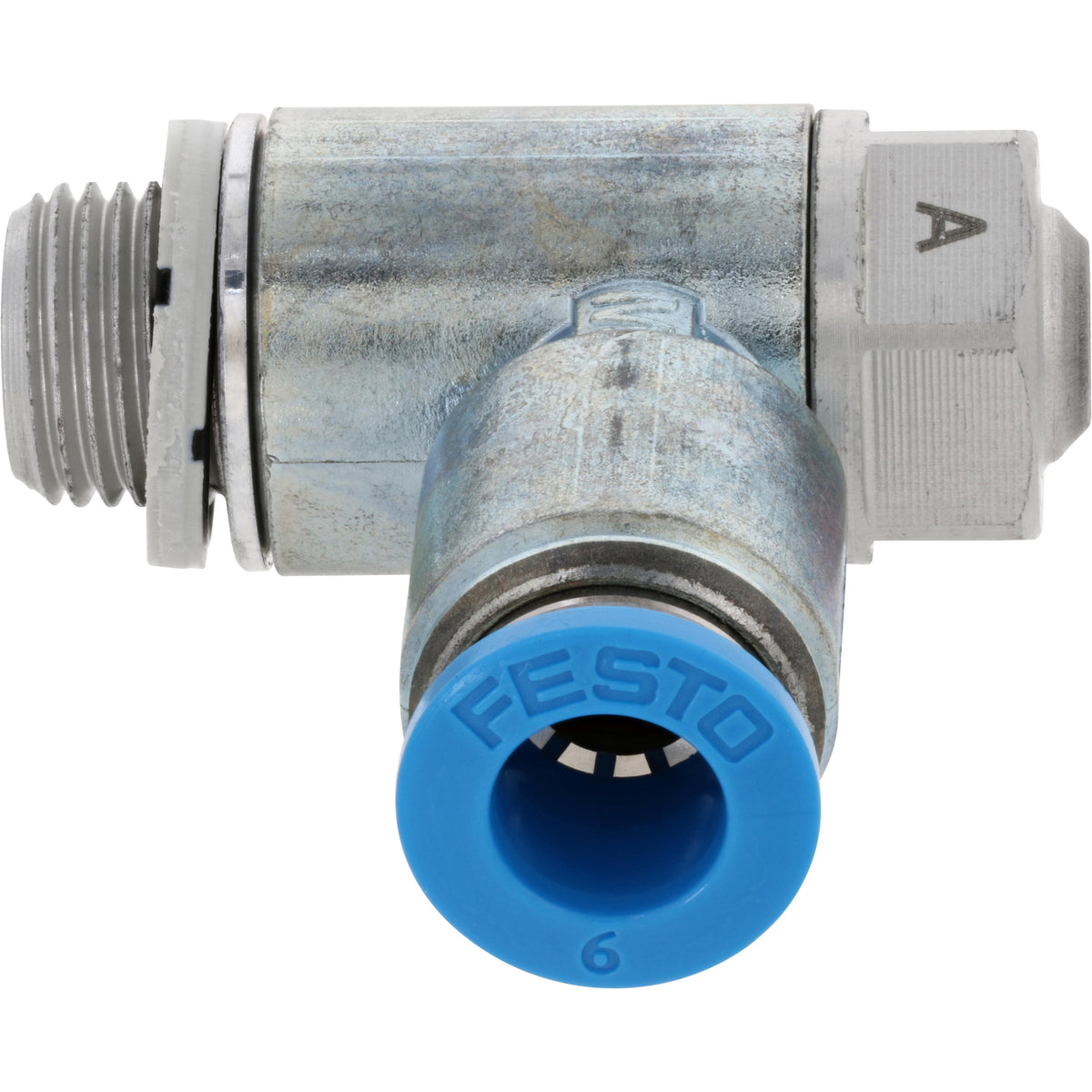

One-way flow control valve with blue press connect collar and exposed threads. Part shown on white background.

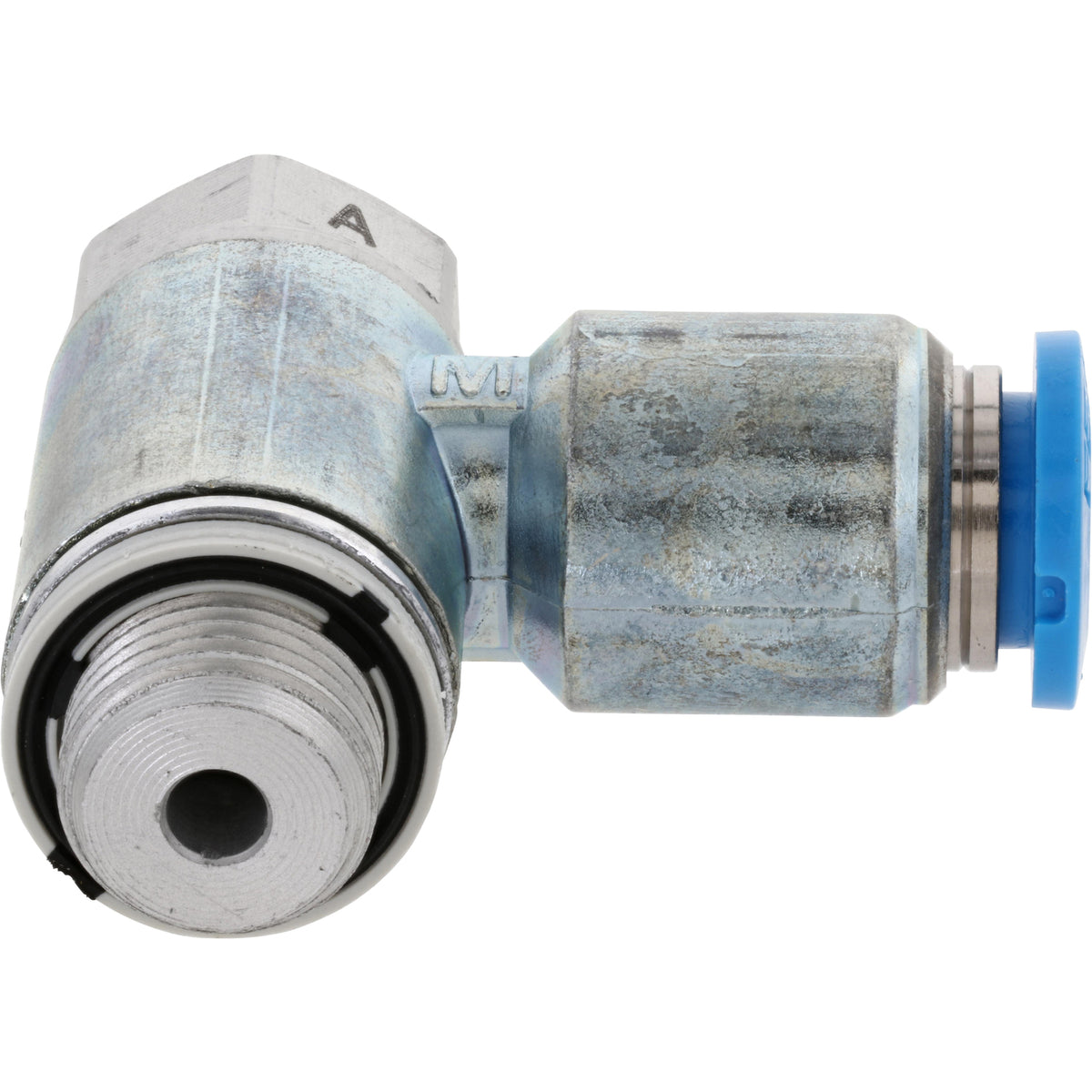

One-way flow control valve with blue press connect collar and exposed threads. Part shown on white background.

This flow control valve is used on multiple pneumatic cylinders found all Wild Goose Filling canning systems.

This flow control valve is used on multiple pneumatic cylinders found all Wild Goose Filling canning systems.

Compatible cylinders include:

  • Fill Lift Cylinder
  • Lid Drop Cylinder
  • Splitter Cylinder
  • Gosling Rotary Cylinder
  • Quick Change Seamer Rotary Cylinder
  • Legacy Seam Lift Cylinder
  • Legacy Can Push (Linebacker) Cylinder

This flow control fitting is used to control the speed of the cylinder’s extend and retract motions.

Features:

  • Functional combination of throttle check valve and piloted non-return valve.
  • Flow control valve, throttling at one end

Specs:

  • Valve function: Exhaust air flow control non-return function
  • Pneumatic connection 1: QS-6 Used with pneumatic tubing with an outer diameter of 6 mm
  • Pneumatic connection 2: G1/8
  • Adjusting element: Slotted screw
  • Standard nominal flow rate in flow control direction: 185 l/min
  • Standard nominal flow rate in non-return direction: 160 l/min … 240 l/min
  • Operating pressure for entire temperature range: 0.2 bar … 10 bar
  • Operating medium: Compressed air as per ISO 8573-1:2010 [7:4:4]
  • Temperature of medium: -10 °C … 60 °C
  • Nominal tightening torque: 3 Nm
  • Tolerance for nominal tightening torque: ± 10%
  • Material of screwed plug: Wrought aluminum alloy
