6mm Check Valve

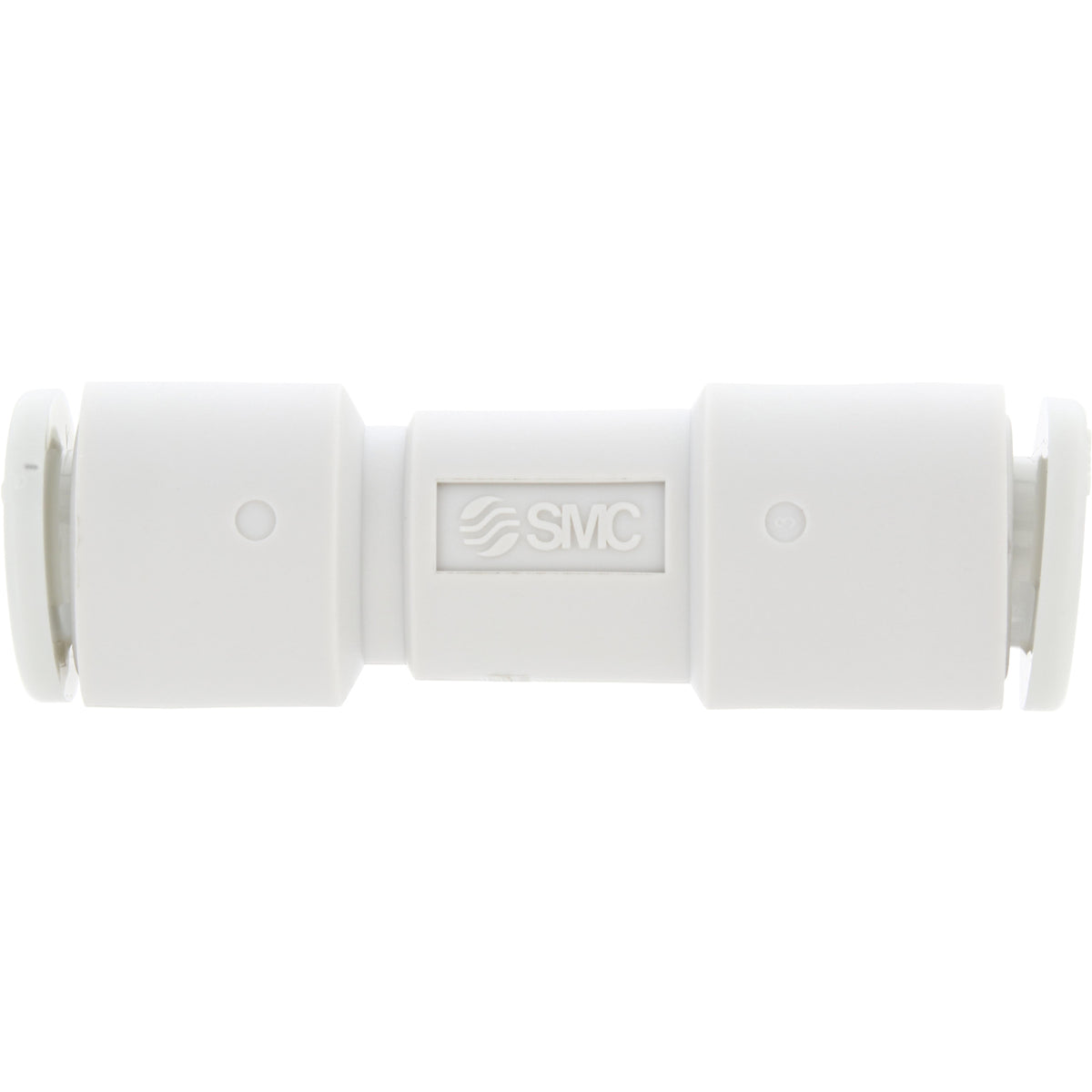

White 6mm check valve on white background.

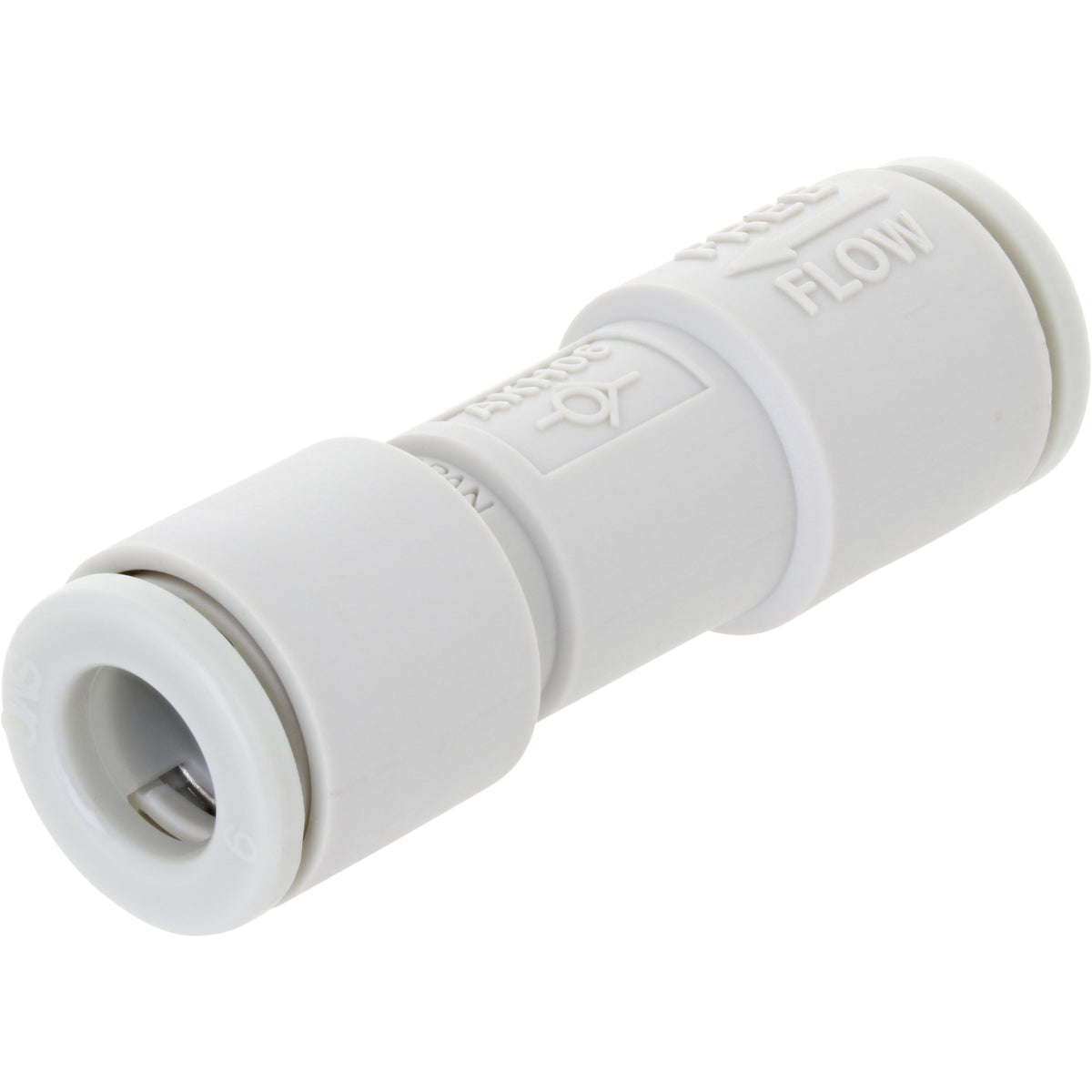

White 6mm check valve on white background.

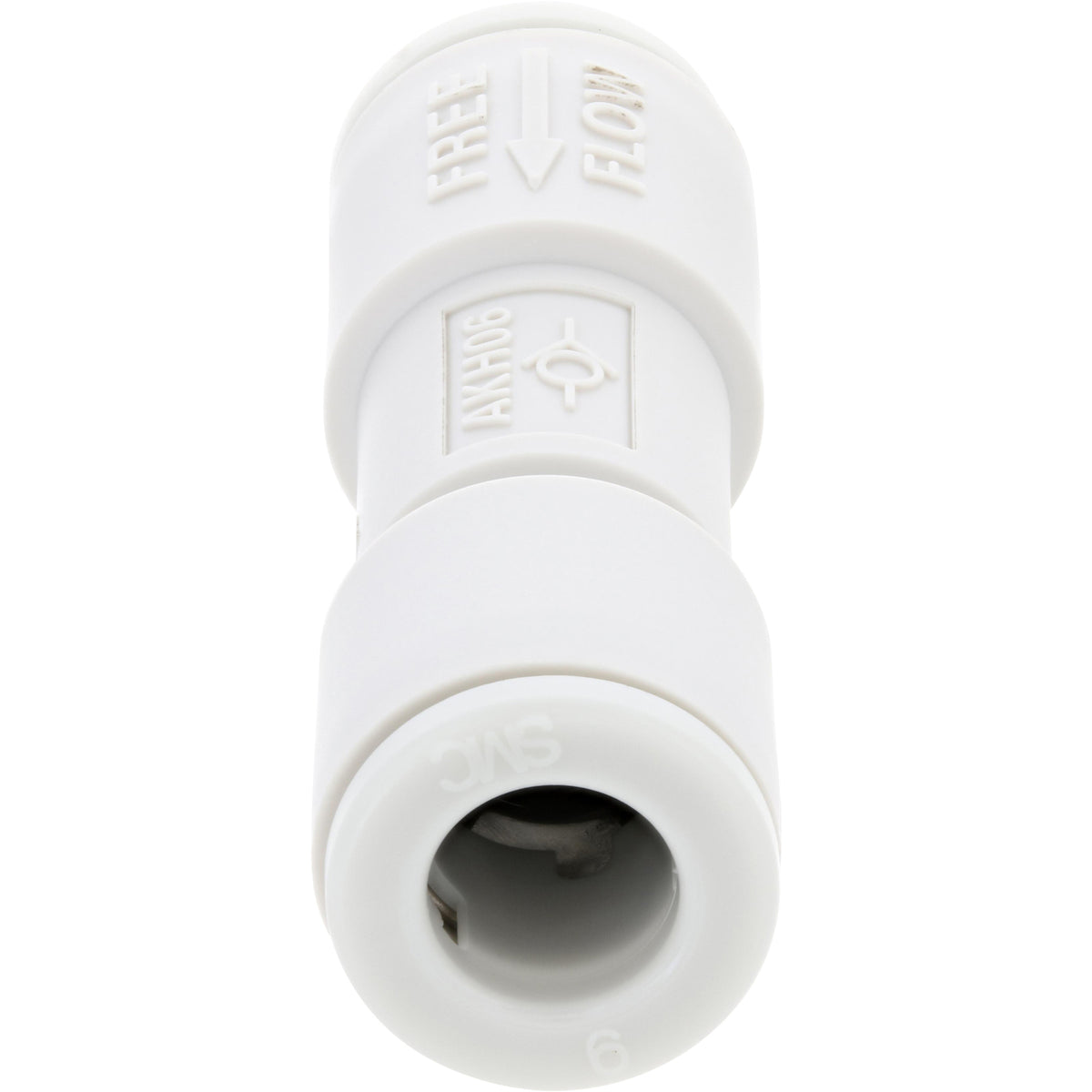

White 6mm check valve on white background.

This 6mm Check Valve is used with the CO2 post purge unit on all Fusion counter pressure systems.

This 6mm Check Valve is used with the CO2 post purge unit on all Fusion counter pressure systems.

  • One-touch fittings
  • Straight type
  • Easily installed in pipe lines
  • Compact and light weight
  • Can be used for vacuum (-100kPa) -14.5PSI

Specs:

  • Actuation: Direct Acting Pneumatic
  • Cracking Pressure: +0.005 Mpa
  • Operating Pressure Range: -100 kPa to +1 MPa
  • Operating Temperature Range: -5 to +60 °C
  • Overall Length: 37.1 mm
  • Overall Width: 11.6 mm
