3/8″ Tube x 3/8″ NPT Male Connector

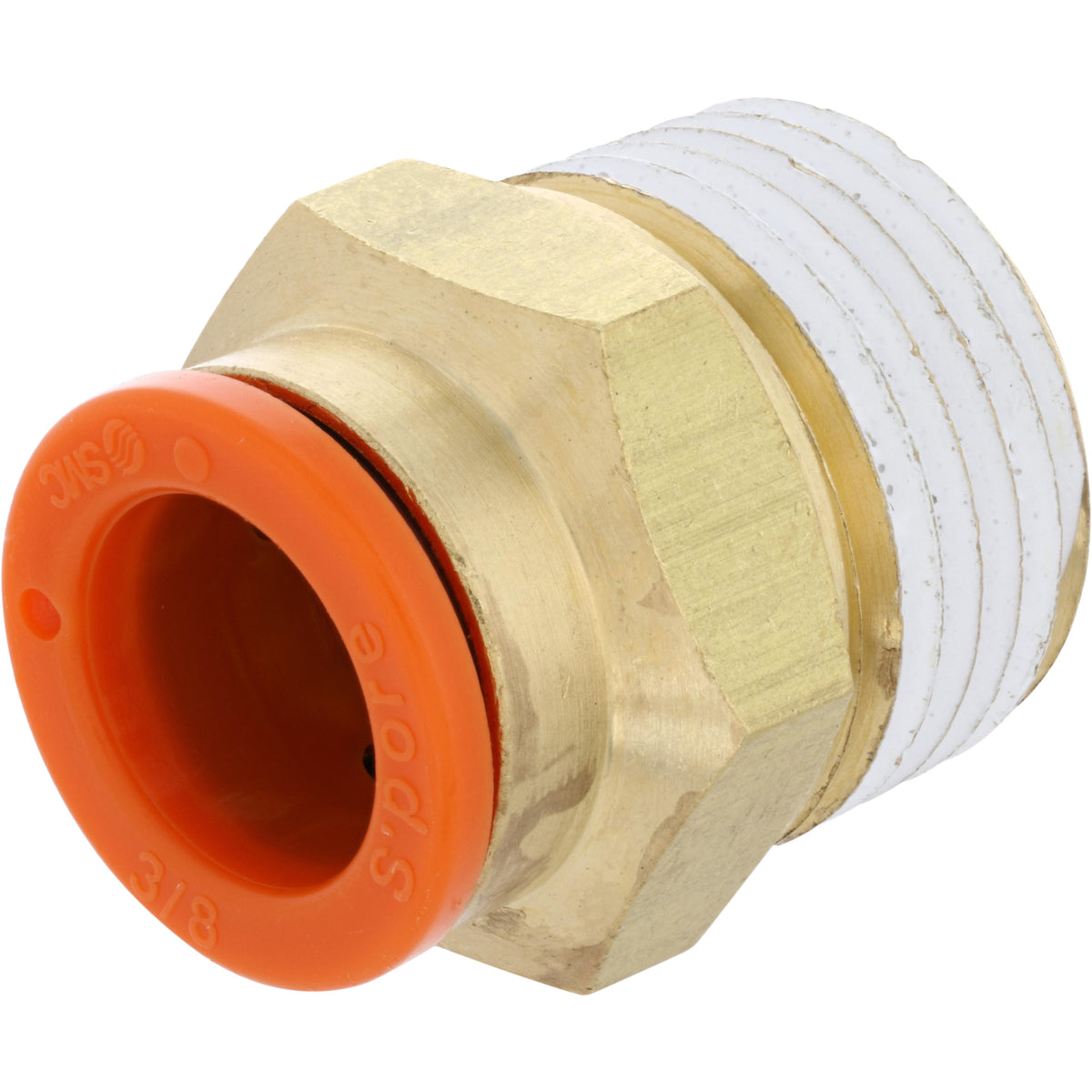

Push connect with orange plastic push collar and brass threads. Part shown on white background.

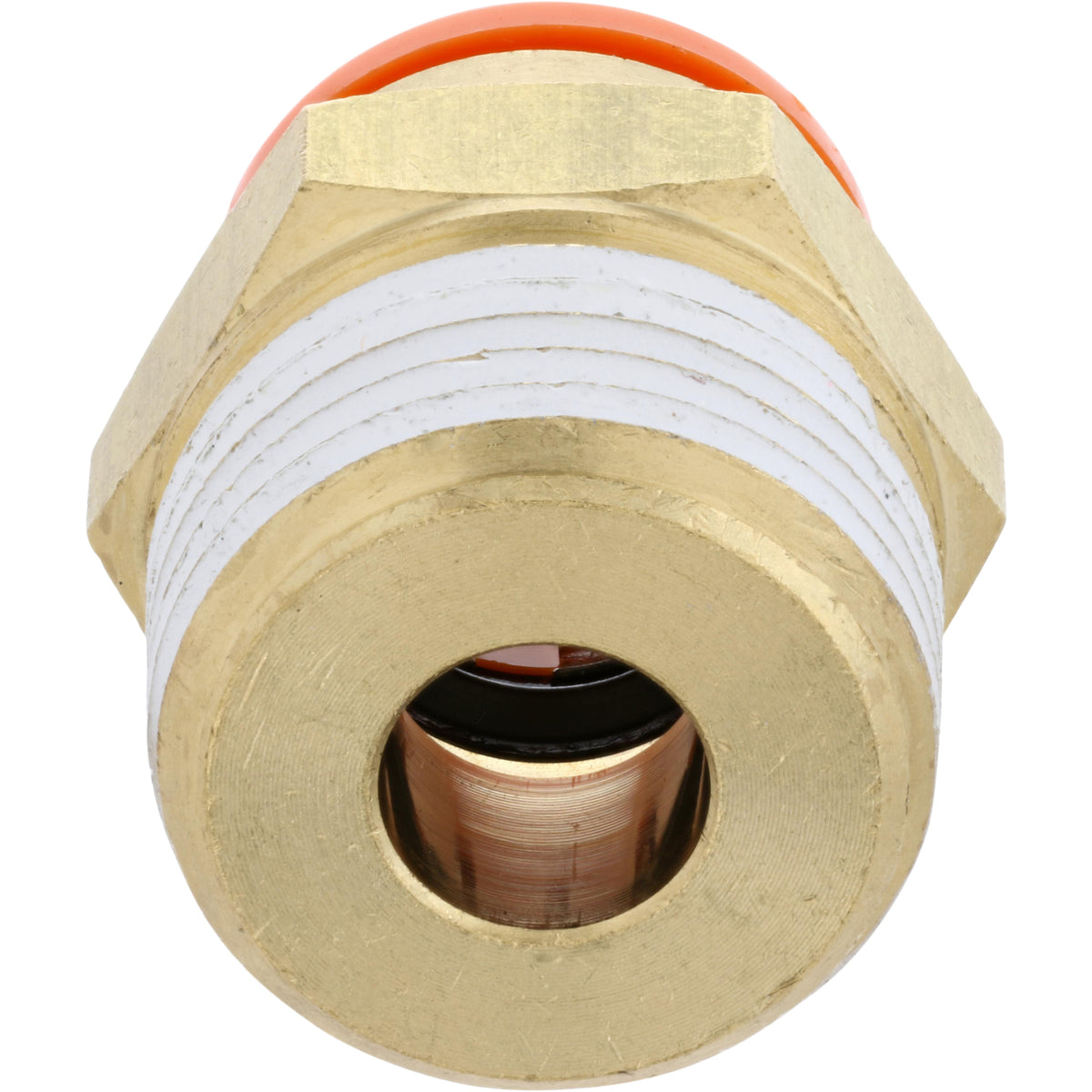

Push connect with orange plastic push collar and brass threads. Part shown on white background.

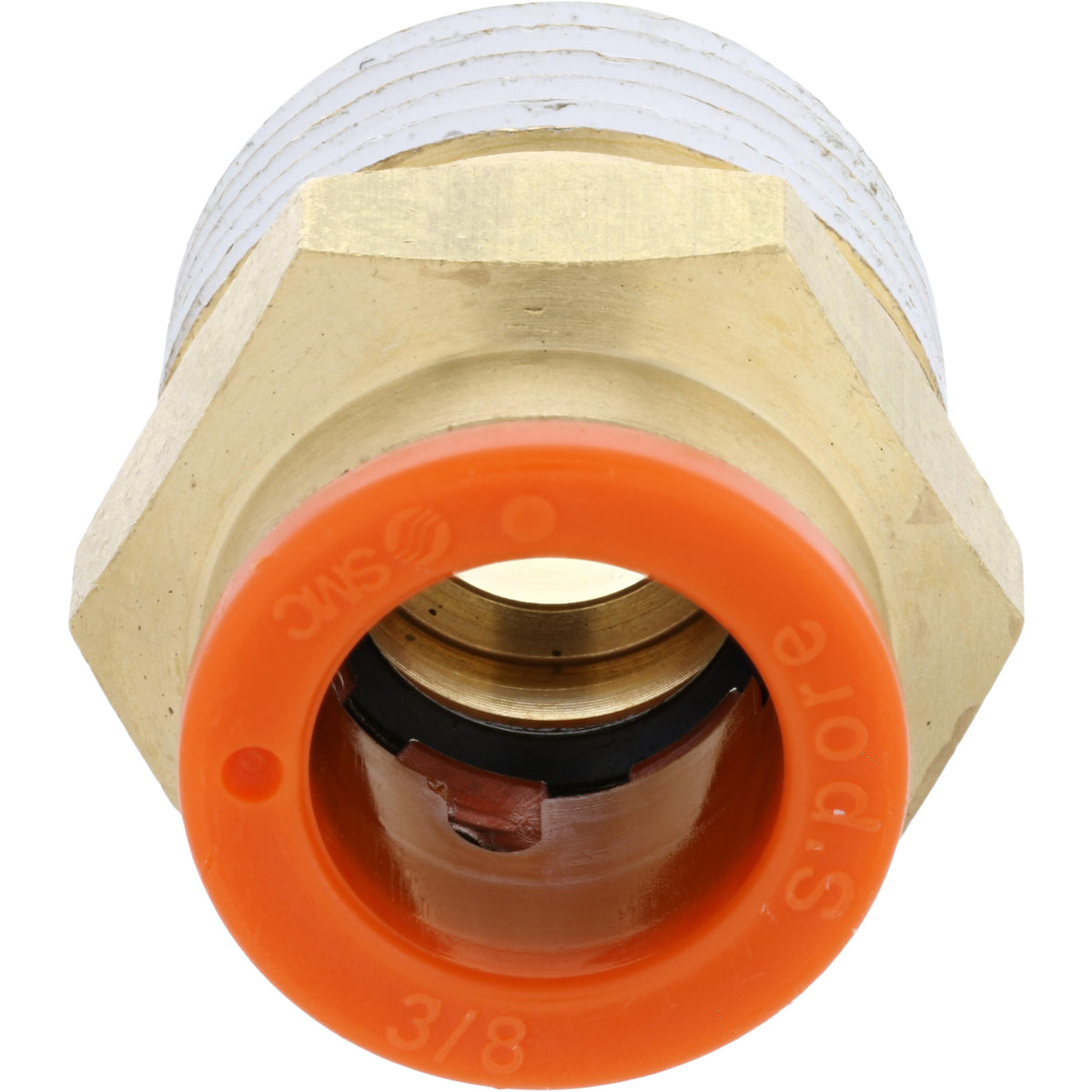

Push connect with orange plastic push collar and brass threads. Part shown on white background.

This fitting is used with all Meheen M2, M4 and M6 bottle fillers manufactured after 1/1/2019.

This fitting is used with all Meheen M2, M4 and M6 bottle fillers manufactured after 1/1/2019.

  • Accepts nylon and polyurethane tubes
  • Stud allows rotation of the body for ease of installation in confined spaces
  • Release collar allows easy removal of tubing without damaging the tube
  • Can be used for a wide range of pressures from a low vacuum up to a pressure of 1.0MPa

Specs:

  • Burst Pressure: 3 Mpa
  • Compatible Tube Outer Diameter: 0.3750 in – 3/8 in
  • Fitting Connection Family: Push-In to NPT
  • Operating Pressure Range: -100 kPa to +1 MPa
  • Overall Length: 27.9 mm
